Suppose we have a two-player game in which each player takes turn making his/her move. We assume that the game will always terminate in a draw, win, or loss. We can conceptualize the game as a tree consisting of all the possible "game board" configurations with the initial configuration as a root node. Each node in the game tree corresponds to a possible configuration of the game. A leaf node corresponds to an end game configuration: a win, loss, or draw.

For the sake of definiteness, assume the players are John and Mary. We can imagine when John is to make a move, he will move to a game node that is best for him. What's best for John is based on some numerical value that he associates with each of next possible moves. How are the value of each of the game node calculated? Here is one such possible computation.

For each of the leaf node, John can assign a value of 1 if he wins, 0 if he ties, and -1 if he loses. Conceptually, John defines a "pay-off" function P as follows:

P (leaf) =

- 1 if John wins
- 0 if John ties
- -1 if John loses.

Now, John assigns a value, V(x), to a game node x, as follows:

V (x) =

- if x is a leaf node
- P (x)

- otherwise
- max {V (c) | c is a child node of X} if John moves next.
- min {V (c) | c is a child node of X} if Mary moves next.

The heuristic here is that John would make a move to a node that has the maximum value
for him, and Mary would do her best by going for the node that has the minimum value (from
John's perspective). This game configuration computation is called the *min-max*

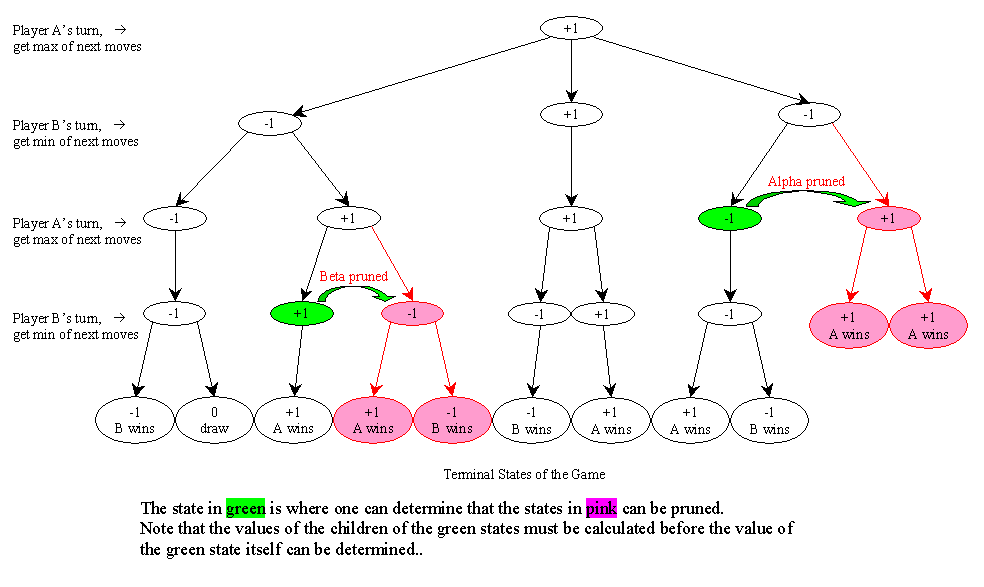

strategy. Below is a fictitious game tree illustrating min-max and
alpha-beta pruning. Alpha-beta pruning will be discussed in a latter
section.

In general, it is not possible to get to all leaf nodes of a game. The best one can do is to examine the game tree up to certain depth. The min-max strategy with depth limitation can be expressed as follows.

Let P (n) be a pay-off function that a player uses to evaluate a game node n.

For a given player, the value of a node x at a depth d is:

V (x, d) =- if x is a leaf node or d > maximum depth
- P (x)

- otherwise
- max {V (c, d + 1) | c is a child node of x} if this player moves next.
- min {V (c, d + 1) | c is a child node of x} if the other player moves next.

In computing the min/max value of a game tree node, we can skip ("prune") the evaluation of some of the children nodes using what is known as alpha-beta pruning.

Let * alpha* be a * lower* bound for the value of a max node B, and let
C be a child node of B. If the value v of a child of C is less or equal to
*alpha*, then we can use v as a value
for C and skip the rest of the children of C. This is called "*alpha pruning*".

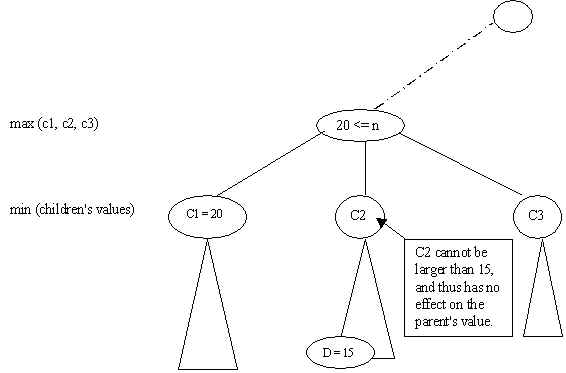

In the figure below, suppose we have (recursively) determined that the value of
C1 is 20, then alpha = 20 is a lower bound for the
parent (max) node. Now, suppose as we (recursively) compute the value for
C2, we determine that the value of D, a child of C2, is 15. The best
possible move for C2 cannot have a value larger than 15 and has no effect on the
parent (max) node. Thus we can set the value of C2 to 15 and ignore the
rest of the children of C2.

Let * beta* be an * upper* bound for the value of a min node B, and let C be a child node of
B. If the value v of a child of C is greater or equal to beta, then we can use v as a
value for C and skip the rest of the children of C. This is called "*beta pruning*".
__ Exercise__: draw a figure similar the one below to illustrate beta pruning.

Alpha-beta pruning can be expressed in terms of the min-max algorithm using a special kind of accumulator. We first describe an object-oriented formulation for the min-max algorithm.

A common approach to computing the max and min is to iterate over the
available states. This involves
casting the set of available states into some sort of linear ordering.
But the statement of the min-max principle is *not* dependent on any
linear ordering of the set. It
simply prescribes a recursive application of V(s)
onto the set. This is akin
to the higher order function called “map”, familiar to functional
programming practitioners. We thus
express the min-max algorithm in terms of a map function rather than iteration.
Since the actual map function is independent of the algorithm, it belongs
as a service provided by the game board, and not as an integral part of the
algorithm. The map method provided
by the *IBoardModel* takes an
abstract “lambda” object, *IBoardLambda*,
and a generic input parameter. The map()
method only depends on whether or not the board’s state is terminal, hence *IBoardLambda*
has two corresponding methods: *apply()*
for the non-terminal state and *noApply()*
for the terminal states. The map
method applies the lambda (with its input parameter) to all available valid move
states from the current state. The
lambda asks the board to make a move which also checks the status of the board,
and recurs if necessary by asking the board to map it again.
For efficiency reasons, it is best to accumulate the current extremum
value and corresponding best move during the mapping.
The responsibility to carry out this task is assigned to an abstract
accumulator class, *AAccumulator*. It has an abstract *updateBest()*
method that polymorphically performs the min or max determination both trivially
and transparently, takes care of saving the maximum value (for this player) or
the minimum value (for the other player) and its associated move and stores the
result. It also has a factory
method, *makeOpposite()*, to
instantiate an accumulator for the other player.

The min-max algorithm can now be formulated as a class *MinMax
*that implements *INextMoveStrategy*.
Its method to compute the best next move is rephrased in the following OO
terms.

Ask the *IBoardModel,*
*board*, to map the following
recursive “helper” *IBoardLambda*,
onto all valid moves from the current state with an appropriate initial *AAccumulator*,
say *acc*.

1.
Ask *board* to make the
current move, passing it an *IBoardStatusVisitor*
to do one of the following tasks associated with a possible resulting state.

·
__Player won__: pass the current move and the value +1 to *acc*.*updateBest()*.

·
__Player lost__: pass the current move and the value
-1 to *acc*.*updateBest()*.

·
__Draw__: pass the current move and the value 0 to *acc*.*updateBest()*.

·
__Non-terminal state__:

i.
Ask *board* to map this
helper algorithm onto the now available valid states with a new accumulator, *nextAcc*,
for the other player.

ii.
Pass the current move and the value obtained from *nextAcc*
to *acc*.*updateBest()*.

2.
Ask *board* to undo the
current move.

When the algorithm is finished, the initial accumulator, *acc*,
will hold the best next move with its corresponding value.

The min-max algorithm formulated as shown does not
rely on any concrete implementation of *IBoardModel*.
Thus it can be used with any concrete type of games, as advertised in
earlier discussions. It involves no external iterative loops, and closely
approximates the abstraction of the min-max principle, making the code easier to
write, more robust, more likely to be correct, and more flexible than
traditional implementations. The
Java code for the above OO formulation is almost a word-for-word translation.

Here are UML diagrams and javadoc for MinMax and the union of accumulators.
