Comp201: Principles of Object-Oriented Programming I
|
Summary: The module uses the Ballworld program to demonstrate key ideas in abstract classes, polymorphism, inheritance and other coding techniques. This module will focus on an inheritance-based architecture.
Note: The supplied code is for Full Java language level.

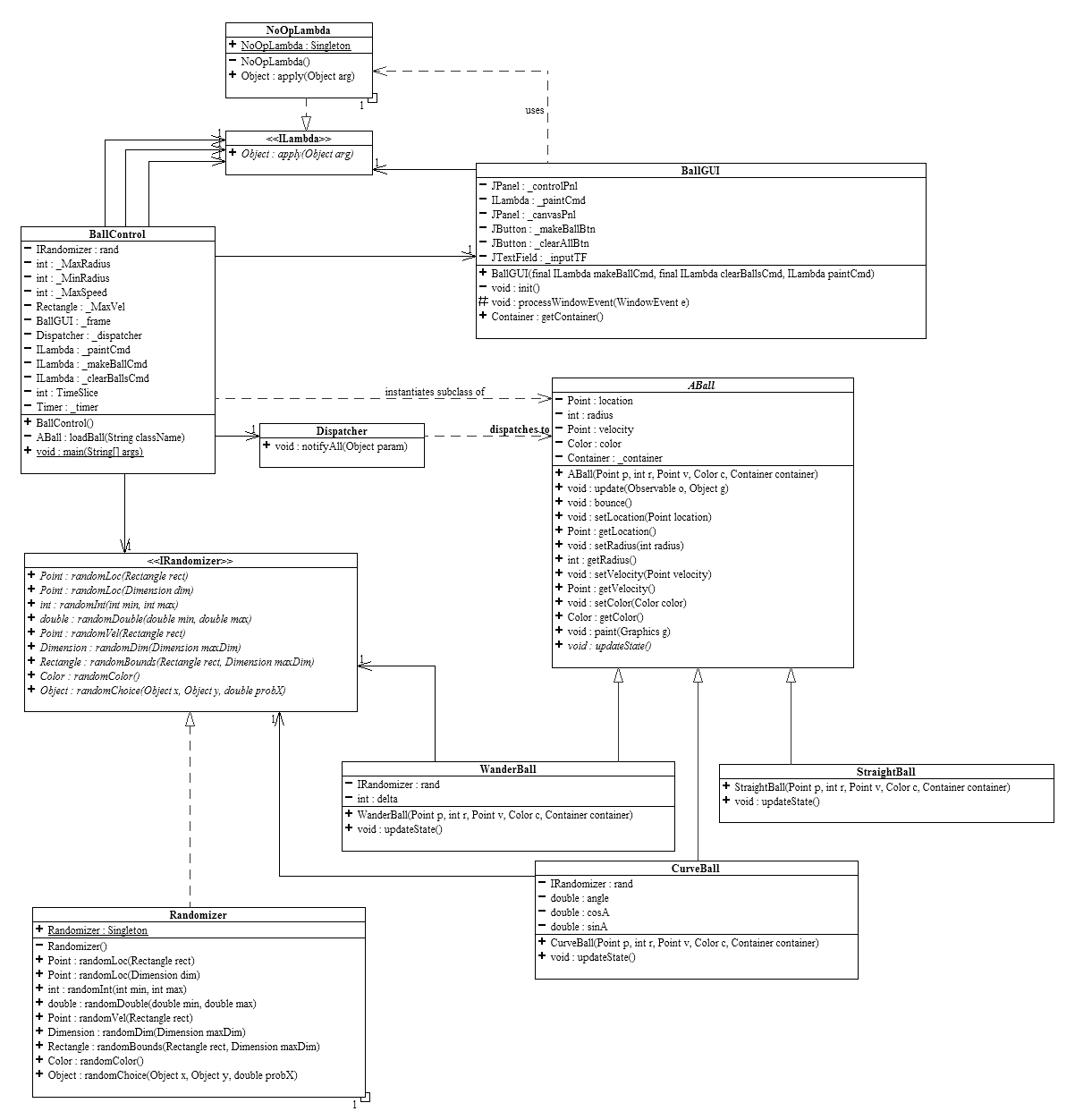

UML class diagram of Ballworld
Figure 1: Note the union
design pattern w.r.t.
ABall
and its subclasses. |
To run Ballworld, load the files into DrJava and right-click the
BallControl file. Select "Run Document's Main
Method" to run the program. From the command line, go to the
uppermost Ballworld directory and compile all the files in both the
directories ("javac ballworld/*.java" and "javac
command/*.java") and then run the program as such: "java
ballworld.BallControl". The Make Ball
button creates an instance of whatever ABall
class is typed into the text field on the left. The "Clear
All" button clears any balls off of the screen.
In a nutshell, the way Ballworld works is akin to a
flip-book animation:
The BallControl
class contains a
Timer
that "ticks" every 50 milliseconds.
Every time the timer ticks, the panel in the BallGUI
upon which the balls are to be drawn is requested to
repaint itself. When the panel repaints, it also tells the
Dispatcher
to notify every
ABall
in the system to update itself. When
an ABall
updates, it updates any internal
values it has (its "state") such as its color, radius, and/or velocity.
It then moves its position by an amount corresponding to its velocity
and draws ("paints") itself onto the panel. Since this is happening 20
times a second, the balls appear to be moving and/or changing and thus
the animation is acheived. The ILambda
interface3 enables the
BallGUI
to
communicate in a generic, decoupled manner to the BallControl
and the Randomizer
class is a utility class that provides methods to produce various random
values needed by the system. Much of the code in Ballworld is
significantly more sophisticated than what has been covered in the
course so far--it will be covered soon, don't worry!
ABall
,
WanderBall
, CurveBall
and
StraightBall
. In a union design
pattern, we see that the superclass represents an abstraction of the
union of its subclasses. For instance, a fruit is an abstraction of
specific concrete classes such as apple and pear. A fruit embodies
the common characteristics of its subclasses even if it doesn't
completely describe the exact nature of those characteristics. In a
fruit, there is a seed. However, the notion of "fruit" doesn't
specify exactly the number, size, color or shape of its seed(s). It
only specifies that it does indeed have a seed. Likewise, a fruit
has the behavior of ripening. Apples, oranges, and bananas all ripen
differently and at different rates. The abstract fruit notion does
not specify the specific nature of the ripening behavior, just
simply that it does have that behavior. In such, we see that we can
never have a fruit that is not a specific class of fruit, such as an
orange or grape. abstract
keyword in the class
definition:
By convention, the classnames of abstract classes always begin with "A".
ABall
is an abstract
class representing a circular ball that has a number of properties:
a color, a position, a velocity, etc. The abstract ball also has
some defining behaviors, such as that all balls should paint a
filled, colored circle when requested to display themselves on a
graphics context (a panel). Likewise all balls know how to bounce
off the walls of the container. These concrete behaviors are called
"default behaviors" because all subclasses of
ABall
, such as StraightBall
and
CurveBall
, automatically get these
behaviors by default. One of the most common and useful reasons for
using an abstract class is to be able to define the default
behaviors for all the subclasses.public abstract class AFruit { // rest of the code public abstract void ripen(); }There is no code body because it cannot be specified at this abstraction level. All that the above code says is that the method does exist in all
AFruit
.
The specific implementation of method is left to the subclasses,
where the method is declared identically except for the lack of
the abstract
keyword:
public class Mango extends AFruit { // rest of code public void ripen() { // code to ripen a mango goes here } } public class Tomato extends AFruit { // rest of code public void ripend() { // code to ripen a tomato goes here } }The technical term for this process is called overriding. We say that the concrete methods in the subclasses override the abstract method in the superclass.
Note that if a class has an abstract method, the class itself
must be declared abstract
. This
simply because the lack of code in the abstract method means
that the class connot be instantiated, or perhaps more
importantly, it says that in order for a class to represent
abstract behavior, the class itsefl must represent an abstract
notion.
final
keyword. We will tend to avoid this technique
however, as the changing of behavior as one changes abstraction
levels leads to very unclear symantics of what the classes are
actually doing.In Ballworld we see the abstract method
updateState
. Abstract methods and classes are denoted in
UML diagrams by italic lettering. This method is called by the
update
method as part of the
invariant process of updating the condition of the ball every 50
milliseconds. The update method does 4 things:
updateState
method.
ABall.updateState()
is abstract
because at the abstraction level of ABall
,
one only knows that the ball will definitely do something with
regards to modifying (perhaps) its internal field values(its
"state"). Each subclass will do it differently however. The
StraightBall
will do nothing in
its updateState
method because a
ball with a constant (unchanging) velocity will travel in a
straight line. Remember, doing nothing is doing something!
The CurveBall
's
updateState
method uses sines and
cosines to turn the velocity by a fixed (though randomly chosen)
angle at every update event. You can imagine that other possible
subclassses could do things such as randomly change the velocity
or change the radius of the ball or change the color of the
ball.
ABall
subclasses. All of the code runs at the level of
abstraction of an abstract ball. The differences in behavior of
the various balls made on the screen using the different
concrete subclasses is strictly due to polymorphism. New
types of balls can be added to the system without recompiling
any of the existing code. In fact, new types of balls can be
added without even stopping the Ballworld program!A subclass is fundamentally an example of its superclass. A subclass automatically contains all the behaviors of its superclass because it fundamentally is the superclass. The subclass doesn't have to implement the behaviors of its superclass, it already has them. An actor is a human and by that right, automatically possesses all that which makes a human: one head, two arms, 10 toes, etc. Note that this is true even if the abstract class has 100% abstract methods--it still enforces a strict taxonomical hierarchy.
implements
is about behaving,extends
is about being.
BallGUI
) and the ball
management (BallControl
,
Dispatcher
, etc.) only deal with the
abstract ball, ABall
. That is, they
represent invariant behavior at the abstract ball level. The
display, creation and managment of the balls is independent of the
particular kinds of concrete balls that is being handled. The main
Ballworld framework can thus handle any type of
ABall
, past, present and future.
StraightBall
,
CurveBall
and WanderBall
are
thus concrete variants of ABall
. They
represent the variant behaviors of the system. Other than in
their constructors (which will prove to be a significant point when
this inheritance-based model is compared to a more advanced
composition-based model), these concrete subclasses only code the
abstract variant behavior associated with a ball, namely the
updateState
method. Inheritance gives
any instantiation of these classes both the invariant behaviors from
the ABall
superclass plus the variant
behaviors from the subclass.
The Ballworld code demonstrates the importance of the concept of separation of variant and invariant behaviors.
Where and how to separate the variant and invariant behaviors is arguably the most important design consideration made in writing god software.Clearly and cleanly separating the variant and invariant behaviors in a program is crucial for achieving flexible, extensible, robust and correct program execution.
package XXX;
at its top,
where the XXX
matches with the
directory. name. If neither public
nor private
(nor
protected
-- i.e. a blank
specifier) is used to specify the visibility level of a class or
method, then that method can be seen by other members of the
package but not by those outside of the package. To use the
public classes in a package, the import
myPackage.*;
syntax is used. This tells the Java compiler
to allow all the public classes in the
myPackage
directory. Packages can be nested, though each
level must be imported separately.
static
keyword in their declarations, are fields and
methods that can be accessed at a class level, not just an
object level. In general these are values or behaviors that one
wishes for all instances of a class to have access to. These
values and behaviors are necessarily independent of the state of
any particular instance. Static fields and methods are often
referred to as "class variables" and "class methods".
An examples of a class variables are Math.PI
and
Color.BLUE
or
Color.RED
. These are universal
values associated with math and color respectively and thus do
not need an object instance to be viable. By convention, all
static field names are in all capitol letters. A static field is
referenced simply by writing the class name followed by a
period and then by the field name. No instantiations are
necessary.
The Randomizer
class contains
numerous static methods. This is because each of the methods to
produce various random values is independent of each other and
that the process in each method does not affect nor is affected
by the state of the rest of the class. Essentially, this entails
that the class contain no non-static fields. A class as such is
referred to as being "stateless". Just like a static
field, a static method is invoked in the same manner as the
static fields: ClassName.staticMethodName(...)
Classes with static methods are usually utility classes
that are used to hold a set of related functional processes,
e.g. Randomizer
holds a collection
of random value generators. Likewise, Math
holds a combination of static values, such as
PI
and static methods such as
sin
() and cos
().
There is one very special static method with the following exact signature:
public static void main(String[] args)This method, found in
BallControl
,
is the method that Java uses to start programs up. Since OO
programs are systems of interacting objects, this static "main"
method is used to create the first object(s) and get the program
up and running. So when Java starts a program, it looks for this
and only this method.super
keyword. super
refers to
the superclass instance, just as this
refers to the class instance itself (the subclass here).
Note that technically, super
and
this
are the same object -- think
of it as the difference between the id
and the ego. (Does that mean
that a coding mistake wiith respect to
super
and this
is a
Freudian slip?)
Suppose the superclass has a method called
myMethod()
which the subclass
overrides. For the subclass to call the superclass's
myMethod
, it simply needs to say
super.myMethod()
. Contrast this to
the subclass calling its own myMethod
:
this.myMethod()
(note: Java syntax
rules allow for the this
to be
omitted).
To make a call to the superclass's constructor the subclass
simply says super(...)
, supplying
whatever parameters the superclass constructor requires. This is
a very common scenario as the the subclass almost always needs
to superclass to initialize itself before it can perform any
additional initializations. Thus the super(...)
call must be the first line in the subclass's
constructor. If the no-parameter constructor of the superclass
is required, the call to super
can
be omitted as it will be automatically performed by the Java
run-time engine. This of course presumes that the superclass's
no-parameter constructor exists, which it does not if a
parameterized constructor has been declared without explicitly
declaring the no-parameter constructor.
Last Revised Thursday, 03-Jun-2010 09:50:29 CDT
©2008 Stephen Wong and Dung Nguyen
