Rice University - Comp 212 - Intermediate Programming

Fall 2001

Lecture #13 - Mutable Linear Recursive Structure Framework

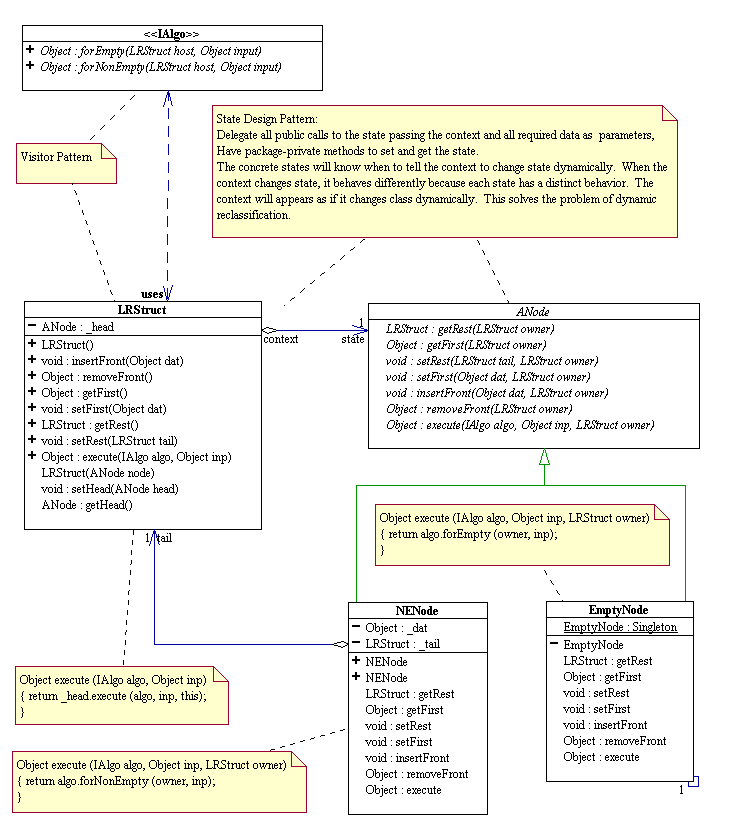

A mutable linear recursive structure (LRStruct) can be in the empty state or in a non-empty state. If it is empty, it contains no object. Otherwise, it contains an object called first, and a LRStruct object called rest. When we insert a data object into an empty LRStruct, it changes it state to non-empty.   When we remove the last element from an non-empty LRStruct, it changes its state to empty.  We model a LRStruct using the state pattern, and as in the case of the immutable list, we also apply the visitor pattern to obtain a framework.

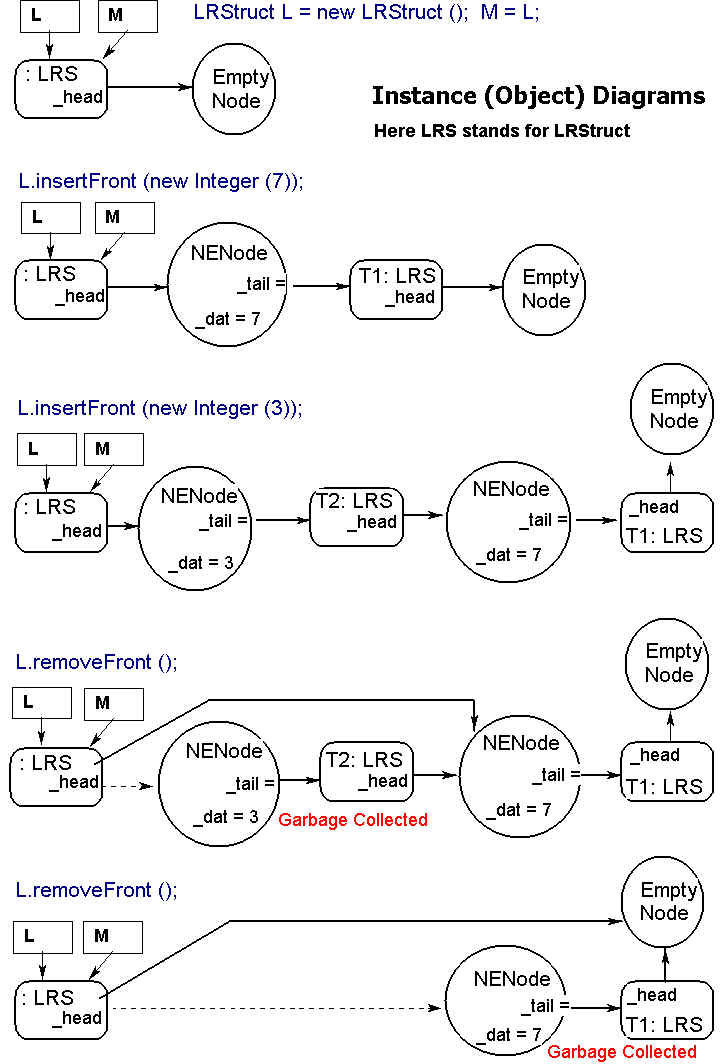

The above public constructor and methods expose the structure of a LRStruct to the client and constitute the pure structural behavior of a LRStruct. They form a minimal and complete set of methods for manipulating a LRStruct. Using them, one can create an empty LRStruct, store data in it, and remove/retrieve data from it at will.  Below is a series of object diagrams showing snapshots of an instance of LRStruct at run-time.
