Exam #2 - Comp 212

Rice University - Spring 2004


  1. The examination is open book/notes.  You are allowed to consult any written materials available under the sun, except solutions from your current Comp212 classmates.  If your code is based on materials that we did not provide you, just give us the appropriate references.
  2. You are not allowed to discuss the exam in any way with anybody beside the instructors (Cox and Nguyen, but not the labbies) of this course.
  3. Do not post your questions on the newsgroup.  E-mail to both of us, alc@rice.edu and dxnguyen@rice.edu, your questions instead. We will reply to you directly, and if deemed necessary, we will forward our reply to the newsgroup as well.  We will monitor our e-mail between 7 PM and 11 PM  (March 24, 2004) to catch and respond to your questions
  4. Write your code in the most object-oriented way possible, that is with the fewest number of control statements and no checking of the states and class types of the objects involved in any way.
  5. We expect correct Java syntax, though we will forgive trivial errors such as missing semi-colon, unmatched curly braces.
  6. There are 5 questions for a total of  100 points.  You have 3 hours to do the exam.
  7. Submit a hard copy with all answers in type-written form, except perhaps diagrams (if any) which can be hand-drawn.  Be sure to print your name and sign the honor pledge.  Bring your exam to class on Friday, March 26, 2004 at 1 PM.
Pledge of Honor


  1. (  18 pts)  2 a) (8 pts)   2 b) (8 pts)   2 c) (8  pts) 3. (18 pts)  4 a) (5 pts)  4 b) (15  pts)  5 a) (10 pts) 5 b) (10 pts) Total (100)

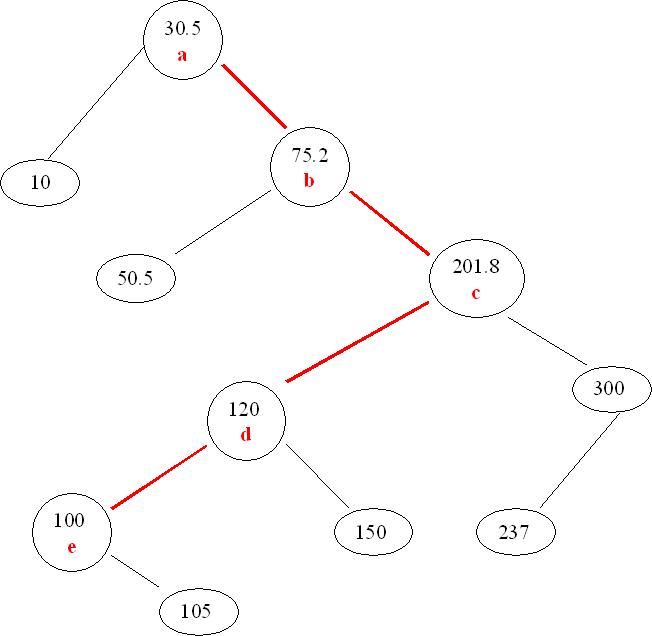

1. Write a BiTree visitor, called RemGreaterThan, for execution on a binary search tree (BST) that removes all objects greater than a given key, transferring them to a new BiTree.  The key is passed as a parameter to the visitor.  The new BiTree is returned by the visitor.  This new BiTree must be a BST.  Finally, to receive full credit, your visitor must visit the fewest possible nodes.  For example, in the BST shown below, only the nodes a, b, c, d, e should be visited. when removing elements greater than 99.



2.  a) Write a BiTree visitor, called FindIthLargest,  that finds the i-th largest node assuming that the BiTree is a binary search tree (BST) and returns the subtree that contains this node at the root.  The Integer index, i,  is passed to the visitor as a parameter.  The 0-th index corresponds to the first largest node.  Throw an exception if the given tree is empty or if i is greater than the number of nodes in the tree.

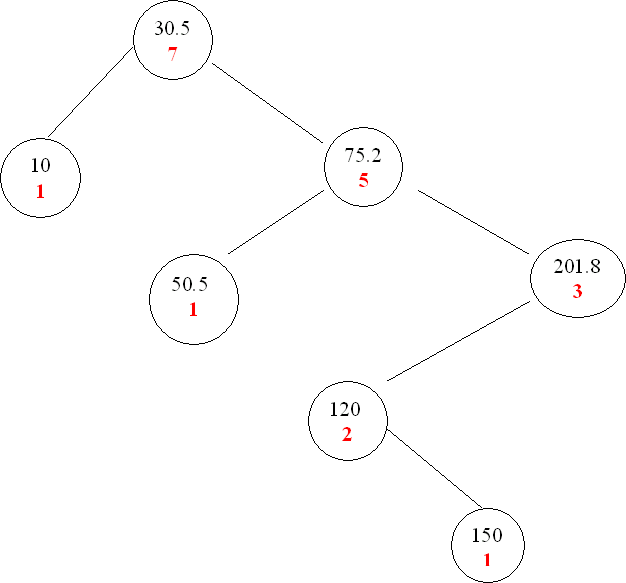

b) Now, assume that each node of the BiTree is augmented with its weight.  A node's weight is simply the number of non-empty nodes contained within the BiTree rooted at the node. An empty node has weight 0.  See the illustration below.

 The root data element of a non-empty BiTree is now a pair defined by:

public class DatWeightPair {
    private Object _dat;
    private int _weight;
    public DatWeightPair(Object d, int w) {
        _dat = d;
        _weight = w;
    public Object getDat() {
        return _dat;
    public int getWeight() {
        return _weight;
    public void setDat(Object d) {
        _dat = d;
    public void setWeight(int w) {
        _weight = w;

Revise your visitor from part (a) to take advantage of the weights to reduce the number of nodes visited.

Note: To receive full credit, never ask a subtree its weight.  Instead, solve this problem in the same style as the BiTree visitor  that determined if a BiTree is a leaf.

c)  Here is the code for the binary search tree insertion algorithm, BSTInserter, given in the lecture. Revise the BSTInserter visitor to maintain the weights.

public class BSTInserter implements IVisitor {
    private Comparator _order;
    public  BSTInserter (Comparator order) {
        _order = order;
    public Object emptyCase(BiTree host, Object input) {
        host.insertRoot (input);
        return host;

    public Object nonEmptyCase(BiTree host, Object input) {
        Object root = host.getRootDat();
        if (_order.compare(input, root) < 0) {
            return host.getLeftSubTree().execute(this, input);
        if (_order.compare(input, root) > 0) {
            return host.getRightSubTree().execute(this, input);
        return host;




3. Write an LRStruct visitor to remove the median.  Assume the LRStruct contains Integers sorted in increasing order.  Throw an exception when the LRStruct is empty.  Do this with minimal traversal of the list structure.  The median of a sorted list of N (N > 0) elements is the element at the index N/2.  The first element has index 0.

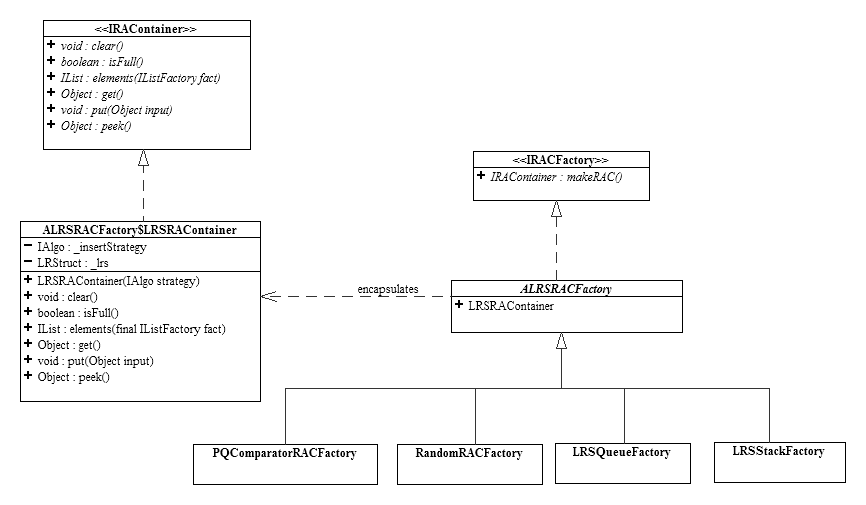

4. Consider the following design for a restricted access container (RAC):

This is very similar to the RAC presented in class except for one very important difference:  the IRAContainer.isEmpty() method is absent

A RAC behaves differently when it is empty or non-empty; for example, calling get() on an empty RAC results in an exception, while a non-empty RAC will return an object.  Therefore, it makes sense for a RAC (IRAContainer) to be able to accept a two-case visitor.

a)       Write the signatures for the methods of a visitor to the above RAC and the signature the method that should be added as a result to IRAContainer

public interface IRACVisitor {







public interface IRAContainer {

      // … other methods not shown…




b)       Write the code for the method(s) of LRSRAContainer  (ALRSFactory$LRSRAContainer in the above UML class diagram) that implements the abstract method(s) you added to IRAContainer in part a).

Tip: To access the outer LRSRAContainer object from within an anonymous inner class inside a LRSRAContainer, use the syntax LRSRAContainer.this.

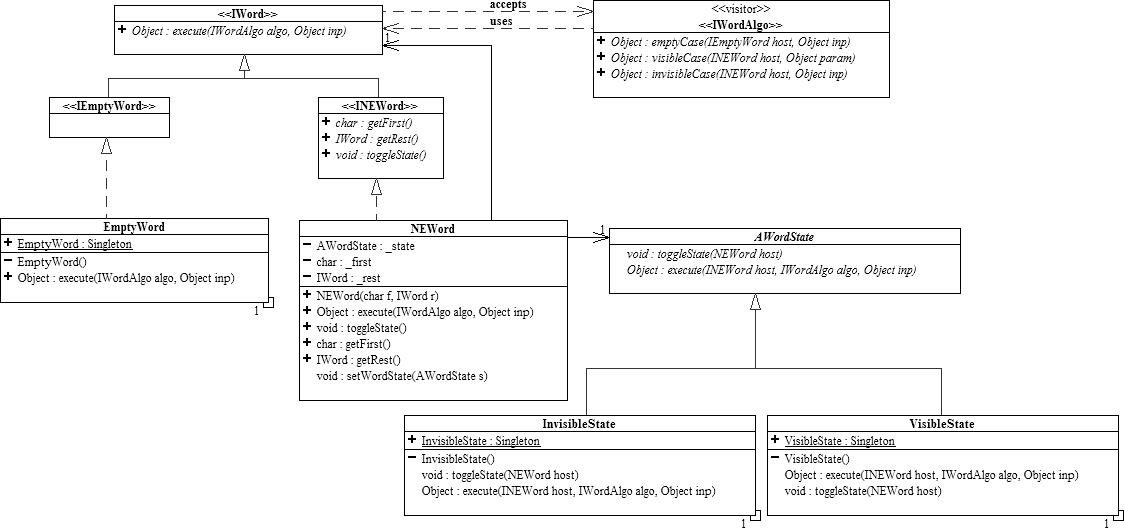

5.  In the Hangman project we represented a word whose characters were either visible or invisible as a modified list:

This model has several problems however:

·         An NEWord in its invisible state does not actually represent an invisible word, but rather an invisible first.   The rest of the NEWord could be either visible or invisible.  Conversely, the same is true if the NEWord is in its visible state.

·         The state pattern used in NEWord tightly couples the visibility property to the composite property of the word, even though those two properties really have nothing to do with each other.

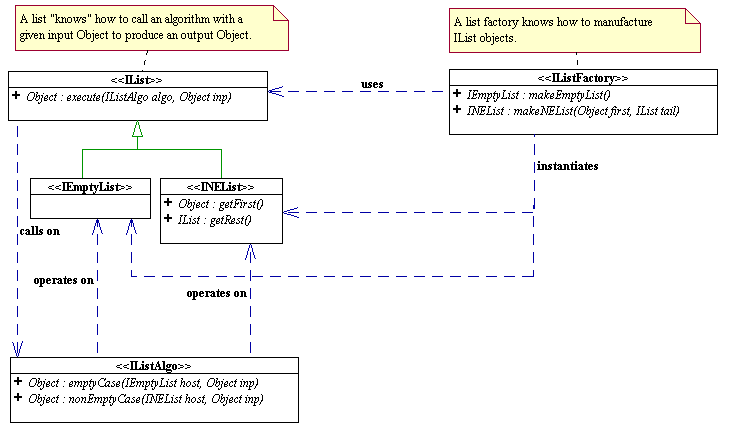

So, what we would like to do is to replace IWord with IList, our immutable list framework (see UML diagram below).   Thus, a Hangman word would be represented as a IList of  WordChar objects (that you will be asked to design).


a) Design a class called WordChar that represents a character in the hangman word.  WordChar is to be designed in such a way that the hangman word can simply be represented as an IList of WordChar objects.  It is now the WordChar that may be visible or invisible.  Be sure to replicate all the non-list functionality of the IWord system including the ability to run visibility-dependent algorithms, e.g. ToString, IsVisible, GuessChar, etc.

Draw the UML class diagram of your WordChar model.   Clearly indicate the signatures (i.e return type, parameters type) of all methods and appropriate access specifiers of all fields and methods. You do not need to write any code.



b)       Write the ToString algorithm, which is an IListAlgo, for your new word model designed in part a) to return the String representation of the hangman word (list of WordChar).  Recall that a hangman word displays the actual character when it is visible and an underscore ('_') when it is invisible.
