A pizza has a price and a shape. We want to compute the price/area ratio. It is the shape that intrinsically "knows" how to compute its area. A shape is an abstract concept. The area of a shape is an abstract concept. A rectangle is a concrete and specific shape. A rectangle knows its own width and height and therefore can compute its area. A circle is a concrete and specific shape. A circle knows its own diameter and therefore can compute its area. In the table shown below, we describe how this conceptual view of a pizza is expressed in Java as an objectoriented (OO) model and compare it with an equivalent functional representation in Scheme. This OO pizza model involves the following fundamental concepts in OOP.
OO Design in Java  Datadirected Design in Scheme
/** * A shape is an abstract entity that intrinsically knows how to compute its area. */ public interface IShape { public double getArea(); }
;; A Shape is either ;; (makeRectangle w h) where ;; w and h are numbers representing ;; the width and the height ;; or ;; (makeCircle r) where ;; r is a number representing the radius ;; contract: getArea: Shape > number ;; purpose: ;; (getArea s) returns the area of s.
/** * A rectangle is a shape. * It has a width and a height and * a way of computing its area using its width and height. */ public class Rectangle implements IShape { private double _width; private double _height; // Below is a very special construct in Java // called the constructor. It is used to // initialize an instance of a Rectangle to // a given width and height. public Rectangle(double w, double h) { _width = w; _height = h; } public double getArea() { // code may involve _width and _height } }
(definestruct Rectangle(width
height)) ;; makeRectangle, Rectanglewidth, ;; Rectangleheight ;; are automatically generated
/** * A circle is a shape. * It has a radius and a way of computing its area using its radius. */ public class Circle implements IShape { private double _radius; public Circle(double r) { _radius = r; } public double getArea() { ... _radius ... } }
(definestruct Circle(
radius)) ;; makeCircle, Circleradius ;; are automatically generated
;; template ;; (define getArea (s) ;; (cond [(Rectangle? s) ;; ... (Rectanglewidth s) ... ;; ... (Rectangleheight s) ...] ;; [(Circle? s) ;; ... (Circleradius s) ...]))

public class Rectangle implements
IShape { // ... public double getArea() { return _width * _height; } }
;; actual code (define getArea (s) (cond [(Rectangle? s) (* (Rectanglewidth s) (Rectangleheight s))] [(Circle? s) (* PI (Circleradius s) (Circleradius s))]))
public class Circle implements
IShape { // ... public double getArea() { return Math.PI * _radius * _radius; } }

/** * A pizza has a price and a shape. */ public class Pizza { private double _price; private IShape _shape; public Pizza(double p, IShape s) { _price = p; _shape = s; } public double getPrice() { return _price; } public IShape getShape() { return _shape; } }
;; A Pizza is ;; (makePizza p s) where ;; p is a number representing the price, ;; and s is a Shape (definestruct Pizza(price shape)) ;; makePizza, Pizzaprice, Pizzashape ;; are automatically generated.
UML is a defacto standard for diagramming OO designs. It is language neutral.

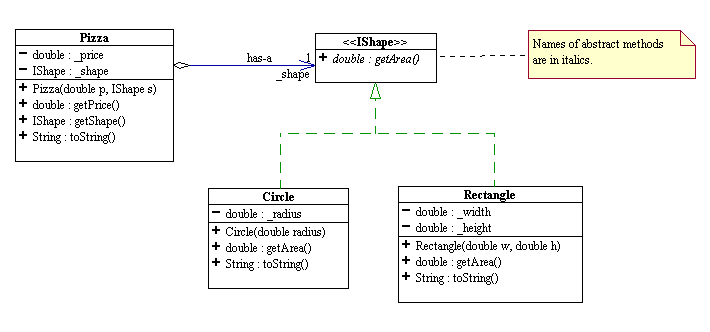

The above Pizza design is represented in UML as follows.
