# Rice University - Comp 212 - Intermediate Programming

## Lecture #2 - The Best Little Pizza House in Texas (part 2)

1. Discussion of the syllabus.
2. Back to the Pizza deal!

### An Object-Oriented Programming (OOP) solution

A pizza has a price and a shape.  We want to compute the price/area ratio.  It is the shape that intrinsically "knows" how to compute its area.

A shape is an abstract concept.  The area of a shape is an abstract computation.

A rectangle is a concrete and specific shape.  A rectangle knows its own width and height and therefore can compute its area in some concrete and specific way.

A circle is a concrete and specific shape.  A circle knows its own diameter and therefore can compute its area in some concrete and specific way.

In the table shown below, we describe how this conceptual view of a pizza is expressed in Java as an object-oriented (OO) model and compare it with an equivalent functional representation in Scheme.  This OO pizza model involves the following fundamental concepts in OOP.

• The use of an interface to represent an abstract entity with purely abstract behaviors, e.g. a shape is capable of computing its area.
• The use of a class to represent a concrete implementation of a given interface, e.g. a rectangle is a concrete shape with a concrete way of computing its area.  The relationship between an interface and its various implementations is an example of what is called in OO parlance, the "is-a" relationship (as in "a rectangle is a shape").
• The use of composition to represent what is called in OO parlance, the "has-a" relationship (as in "a pizza has a shape").
 OO Design in Java Data-directed Design in Scheme /**  * A shape is an abstract entity that intrinsically knows how to compute its area.  */ public interface IShape {   public double getArea(); } ;; A Shape is either ;;   (make-Rectangle w h) where ;;   w and h are numbers representing ;;   the width and the height ;; or ;;   (make-Circle r) where ;;   r is a number representing the radius ;; contract: getArea: Shape -> number ;; purpose:  ;; (getArea s) returns the area of s. /**  * A rectangle is a shape.  * It has a width and a height and  * a way of computing its area using its width and height.  */ public class Rectangle implements IShape {   private double _width;   private double _height;   // Below is a very special construct in Java   // called the constructor.  It is used to   // initialize an instance of a Rectangle to   // a given width and height.   public Rectangle(double w, double h) {       _width = w;       _height = h;  }   public double getArea() {     // code may involve _width and _height   } } (define-struct Rectangle(width height)) ;; make-Rectangle, Rectangle-width, ;; Rectangle-height ;; are automatically generated /**  * A circle is a shape.  * It has a radius and a way of computing its area using its radius.  */ public class Circle implements IShape {   private double _radius;   public Circle(double r) {     _radius = r;   }   public double getArea() {     ... _radius ...   } } (define-struct Circle( radius)) ;; make-Circle, Circle-radius ;; are automatically generated ;; template ;; (define getArea (s) ;;    (cond [(Rectangle? s) ;;            ... (Rectangle-width s) ... ;;            ... (Rectangle-height s) ...] ;;          [(Circle? s) ;;            ... (Circle-radius s) ...])) public class Rectangle implements IShape {   // ...   public double getArea() {     return _width * _height;   } } ;; actual code (define getArea (s)    (cond [(Rectangle? s)              (* (Rectangle-width s)                 (Rectangle-height s))]          [(Circle? s)              (* PI (Circle-radius s)                    (Circle-radius s))])) public class Circle implements IShape {   // ...   public double getArea() {     return Math.PI * _radius * _radius;   } } /**  * A pizza has a price and a shape.  */ public class Pizza {   private double _price;   private IShape _shape;   public Pizza(double p, IShape s) {     _price = p;    _shape = s;   }   public double getPrice() {     return _price;   }   public IShape getShape() {     return _shape;   } } ;; A Pizza is  ;;   (make-Pizza p s) where ;; p is a number representing the price, ;; and s is a Shape (define-struct Pizza(price shape)) ;; make-Pizza, Pizza-price, Pizza-shape ;; are automatically generated.

### Unified Modeling Language (UML) Diagram

UML is a de-facto standard for diagramming OO designs.  It is language neutral.

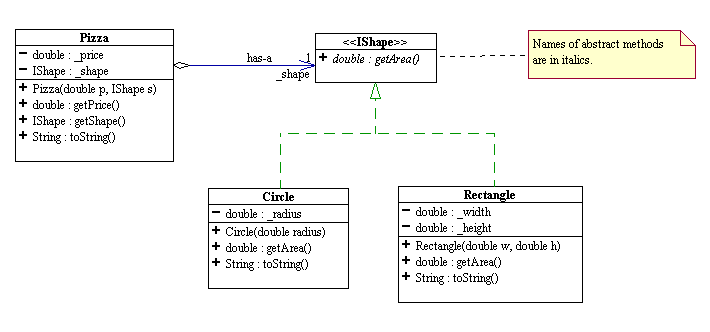

The above Pizza design is represented in UML as follows.

Last revised 01/10/2007 by Dũng X. Nguyễn
