COMP 310 Fall 2011	HW02:  Inheritance-based Ballworld

Assignment Instructions

Recommended Methodology

A structured, planned approach to this assignment will save you a lot of time and head scratching.  It is key to understand what processes are happening where and how information flows from part of the system to the other, in particular, between the model and the view.

Break your work down into pieces where you fully understand each piece BEFORE coding anything!  Work on getting one small piece working at a time before moving to the next part.

Design --> Code --> Test --> Fix Design --> Fix Code --> Retest --> etc.

DO NOT ATTEMPT TO CODE EVERYTHING AT ONCE!

What Processes Take Place in the Model vs in the View?

• While you are not required to implement a full-blown Model-View-Controller for this assignment, it is recommended that you review the materials on the Model-View-Controller design pattern. .    You may omit the controller and adapters for this assignment, though it is recommended, if you have time, to create a MVC for your system as we will require it in the next assignment anyway.
• Your frame (GUI) is your view, so you need to create a class to represent your model.
• The listeners connected to your GUI components should make calls directly to the methods of classes in your model (or to the methods of the adapters if you are implementing a MVC).  Remember that there should be no "business logic" in the view.

Building a Controller

• The Controller is the class that has the main() method.
• The job of the main() method is to instantiate the Controller object.
• The constructor of the controller will instantiate the model and the view and start them once they are fully constructred.

Building a GUI

• Make sure that you have a fully operational GUI before attaching it to your model!  Otherwise, you won't know where your errors are.
• "Fully operational" here means that
  • you have all the GUI components that the demo has
  • the two buttons are able to successfully call methods in your model
  • you are able to send the text in the text field to the model when the Make Ball button is clicked.
  • The display canvas panel in the center of the screen is able to paint a filled circle (ellipse) when it paints.  For now, just write the code to paint the circle right in the paintComponent method.   In the end, the actual circle-painting code will be moved to the balls themselves, but test it here for now.
• Put the setVisible(true) statement in a separate public void start() method so that the GUI can be fully constructed without making it visible.  Once the GUI is visible, events will start to be generated, beyond your control.
• The controller will call the start() method when everything is ready.

The Variant and Invariant Aspects of a Ball

• What are the fields of an  abstract Ball?
• What are the methods of an abstact Ball?
• What are the fields/methods of a particular concrete Ball?
• Design and implement your Ball architecture separately from the rest of the system -- the balls have nothing to do with how the rest of the system manages them.
• Use the Green UML plug-in for Eclipse to enable you to concentrate on the design of the ball and not worry about the syntax details so much.
• Be sure that your abstract Ball class implements the java.util.Observer interface so that the dispatcher, a java.util.Observable, can talk to them.
• It is recommended that you defer writing the painting and bouncing aspects of the ball until a little later (see below).

 Understanding Painting and Animation

• Study the Comp310 Resources site's materials on painting and animation.
• At this stage, simply hard-code the instantiation of a specific ball.   Later, install the dynamic ball loading capability.
• Be sure you understand the difference between the sequences of processes of
  • Timer --> panel's repaint()  vs.
  • paintComponent(g) --> Ball's paint()
• Be sure you can trace the various paint-related calls to/from the view (from the model).
• The "call-back" lambda for painting the sprites is really just a simplified adapter from a MVC pattern.
• Notice how the supplied code for the call-back demostrates how to use an anonymous inner class to instantiate a panel and override its paintComponent method in one fell swoop.
• The only way that the rest of the system ever communicates to a ball is via the dispatcher -- this tells you what the call-back lambda must do.
• Remember that all instances of balls must be loaded into the dispatcher via its addObserver method before they can be notified (their update method called) to move and paint.
• Put the code to start the timer in a separate, public void start() method of the model.    This way the model can be fully constructed before it starts doing anything.
• The controller will call the model's start() method once everything is fully constructed.

Dynamic Ball Loading

• Think about where the ball loading code should go.   Where do you have sufficient information and access to the propoer objects to accomplish the task?   Who'se bailiwick is it?
• Using the supplied dynamic class loader code (see below), the system will be able to load the class specified by the fully-qualified name specified in the text field of the GUI.   Therefore, where do you get the input parameter value when calling the loadBall method?
•  The supplied loadBall method returns an instance of a ball, which must still be added to the dispatcher.
• The supplied code assumes that the constructor of a ball takes a location, a velocity, a radius, a color and reference to the display canvas panel (you can add this later, in the next section).

Bouncing Balls

• To bounce a ball off the wall, you need to detect if the edge of the ball is beyond the left, right, top and/or bottom of the display canvas panel.   (You will need to modify the constructor of the ball to take the display canvas/panel.  The recommended type for this parameter is the most abstract entity that has a width and height, which is java.awt.Component.  You will need to modify your call to add a new ball from the view to the model to pass this parameter along with the classname.)  .
• If you know which wall the ball is bouncing off of, bouncing is really just a matter of negating the value of the velocity in the direction perpendicular to that wall.   That is, if you hit the left or right wall, set the x-component of the velocity to the negative of the x-component of the velocity.   Likewise, if you hit the top or bottom wall, set the y-component of the velocity to the negative of itself.
• Because of the discrete nature of animations, a ball's position may be such that it overlaps the wall or it may even be substantially beyond the wall when the wall collision is detected.   In such, it is necessary to adjust the position of the ball such that the ball is placed completely back inside the drawing canvas.  Here is a relatively straighforward mathematical rubric to do this:
  • Given that it has been detected that a ball has collided with a specific wall (left, right, top, and bottom) in a specific associated direction (x or y), we assume that the ball has been travelling in a straight line since the last timer tick.
  • The position of the ball (perpendicular to the wall) where it would just barely contact the wall, is the average of (i.e. halfway between) the current perpendicular position and the position of where the ball should be, had it actually bounced off the wall.

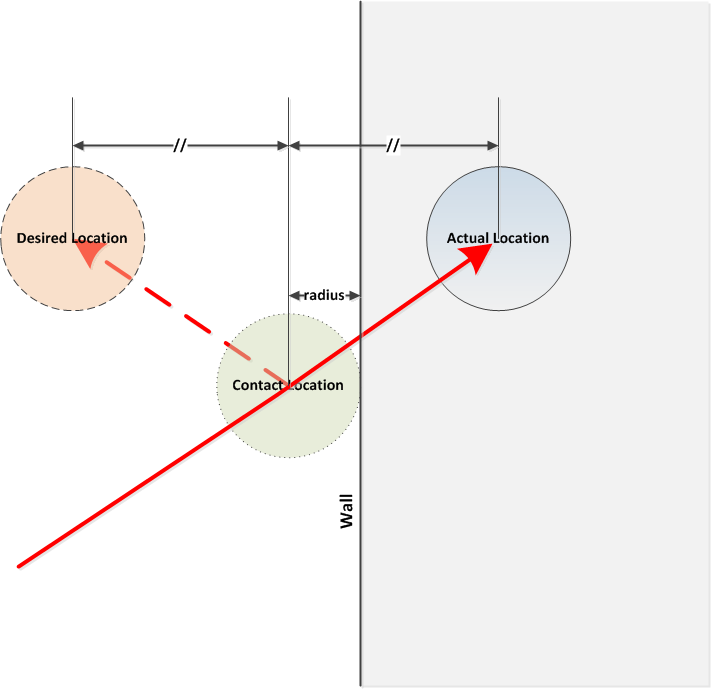

  • Make yourself a detailed drawing of the paths of bouncing balls to convince yourself that the above relationship is true.  (Hint:  Draw actual and desired paths of the center of the ball, not its edge.)
  • The above mathematical relationship can be rearranged to solve for the position of where the ball should be given the ball's current position, its radius and the location of the wall (zero or panel width/height).

Click for full size image

Provided Code

Don't kill yourself trying to re-invent what is given to you.  The following code snippets are provided to you:

• Dynamic Class Loader  -- Given a fully-qualified class name (i.e. package name dot class name) as a String, instantiates an instance of that class given certain assumptions on the available constructor input parameters.
• Basic Animation
  • Timer -- Controls when the system updates.
  • Dispatcher - Holds references to all the balls in the system and sends the "update" call out to all of them when requested.
  • Call-back lambda -- Communicates to the model that a painting process is underway.  (Depending on how your model and view connect to each other, this process may be handled via a direct call to the model or through an adapter rather than using a lambda, which is just a single-method adapter.)
• Utility classes for making interesting balls.   Note that these classes are in a separate package (util) because they have nothing to do with Ballworld in particular.   In such, leave them in their separate packages.    You should not need to modify these classes in any way. :
  • util.zip  -- Zip file of the entire util package, containing the 5 classes/interfaces below.
    • util.SineMaker -- creates sinusoidally varying values.
    • util.IRandomizer -- interface to for a ball to use that needs something that supplies random values of various sorts.
    • util.Randomizer  -- an implementation of IRandomizer
    • util.ILambda -- an interface used for specifying lambdas (commands) of various sorts.
    • util.NoOpLambda -- an ILambda that does nothing.   Useful for insuring well-defined behavior before a lambda is completely specified.

 How to turn a ball

To change the direction of a ball without changing its speed, you need to rotate the velocity vector.   This can be easily accomplished by a simple matrix multiplication, which when multiplied out, becomes:

V_{x, new} = V_{x, old} cos(θ) - V_{y, old} sin(θ)

V_{y, new} = V_{y, old} cos(θ) + V_{x, old} sin(θ)

where θ is the counter-clockwise angle of rotation per timer tick.   That is, for a positive angle value above, the ball will turn to the left.    Sine and cosine are static methods of the Math class.

Notes:

• Math.sin() and Math.cos() both take the input angle in radians.   Math.PI is a pre-determined value for π, useful for converting if you'd rather work in degrees.  Use a small fraction of a radian for your turning angle.   For instance, an angle of one quarter of a radian will take about 13 ticks for the ball to go completely in a circle.
• This is fundamentally a floating point calculation, but since your velocity values are probably integers, you will want to do the entire right-hand side of the calculation in double-precision floating point and then use Math.round() followed by a cast to int to round the value to the nearest integer.
• Be careful!   Make sure that your code replicates the above mathematics EXACTLY.   Pay attention to even the smallest of details above.    If your curving balls quickly spiral to a stop, there's something wrong with your code!

Other Tasks

• Add a button to clear the balls from the screen.   This is simply a matter of deleting all the observers from the dispatcher.   You'll need to add methods and method calls to route clear request from the view to the model.

• Randomized starting positions, velocities, colors, etc.   If this feature is desired, use the IRandomizer utility (with Randomizer implementation) to easily create random Points, ints, Colors, etc.

Grading Criteria:

1. Replicating the behavior of the demo:
   1. Overall look: panel with controls plus separate display area -- 5
   2. Ability to type in ball class name - 5
   3. Ability to create the ball of the desired type - 15
   4. Ability to clear the balls - 10
   5. Ability to have multiple balls of multiple types on screen simultaneously - 15
   6. Correct bouncing behavior off edges of display area and edges of balls. - 10
   7. At least 3 different types of balls being made - 15
   8. Discretionary points - 5
2. No references to concrete ball subclasses in code -- 15
3. Other programming style and operational issues/discretionary points -- 5
