Model-View-Controller Design Pattern

The MVC pattern enables us to decouple the view (the user interface portion) from the model (the back-end computations) in a large system. This decoupling will allow

The model and the view do not know anything about each other.   Their communications consist of calling methods on interfaces to the rest of the system.   The model and view must provide public methods (services) that can be used to communicate to them.   Note that these services need not be standardized or abstracted, while the services they desire from the rest of the system must be abstracted into interfaces.   (Why?)

The model and the view are connected by adapters that translate the interfaces into the provided services.

The controller is the only part of the system that knows the concrete classes being used by the view and by the model.  The controller's job is to:

If the model or view is changed, then the controller will usually need to be changed as well, but any effect should be contained to only the controller.

The controller should be fairly simple and should never contain any "business logic".   If it becomes overly complicated, this is a sign that it is doing work that belongs in either the view or more likely, the model.   Is the model missing a module or a layer?

Criteria for determining if methods belong on the same or different adapter interfaces:

For instance, the methods used to start a new game should be separate from those used to control the game while it is running.

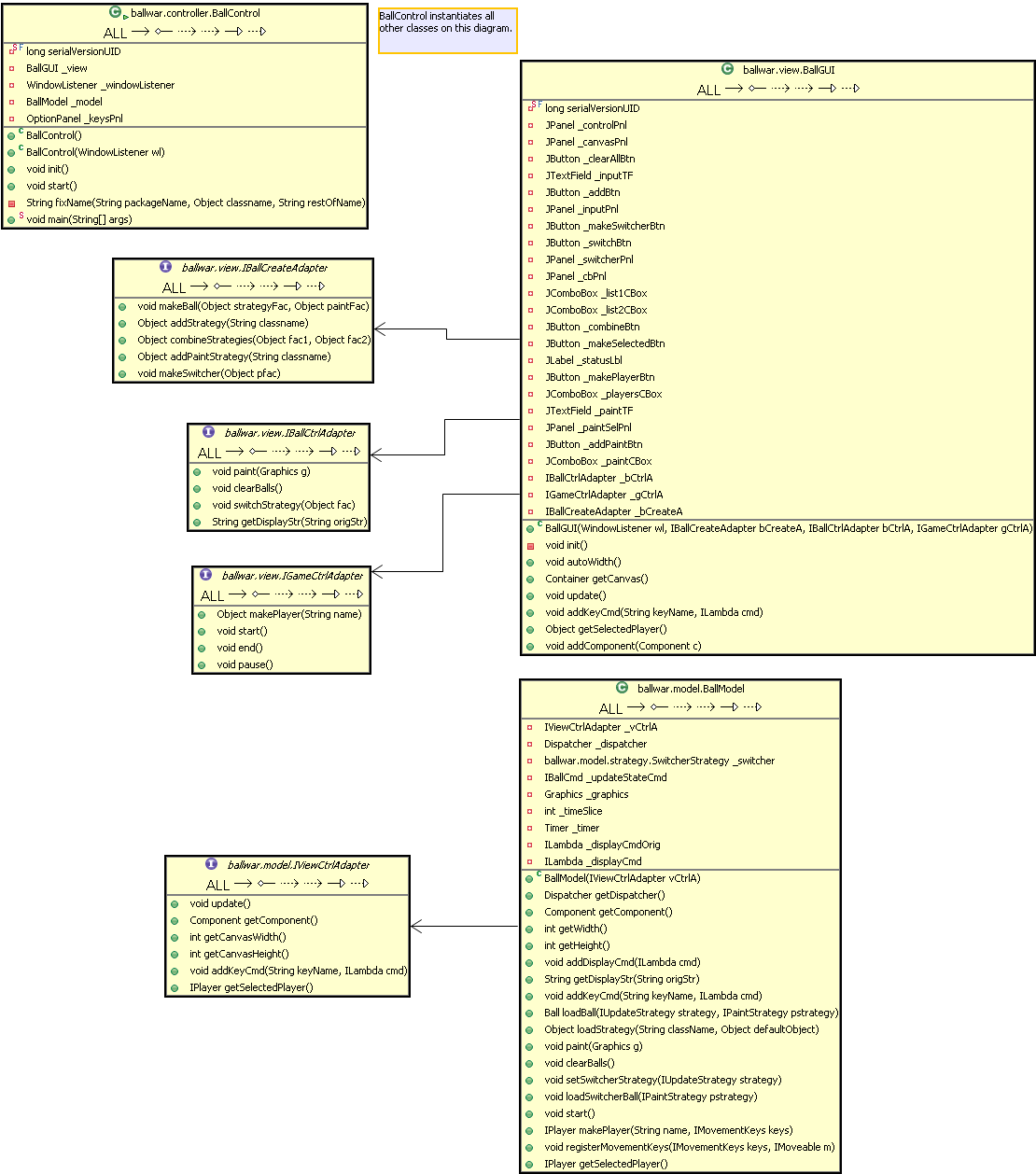

MVC Design for BallWar  (Illustrative purposes only--Individual student's designs are not required to look exactly like this!):

BallWar MVC design

Collision Handling

See the beginning of the discussion in Lec08.

Elastic collisions based on mass of the ball:

Basic physics: 2-Body Elastic Collisions

Make sure that the other ball does not have infinite mass (mass = Double.POSITIVE_INFINITY)!   (Note:  balls with infinite mass and non-zero velocities technically have infinite kinetic energy, so they tend to continuously add energy to the system, which quickly causes problems.)

AElasticMassCollisionCmd:  An abstract IBallCmd superclass that provides protected utility methods that subclasses can use to calculate the effects of an elastic collision that depends on the mass of the balls.  Read the documentation in the class carefully!

Basic recipe for a collision command:

  1. Make sure that the other ball is not yourself!    Remember that the dispatcher sends the command to everybody!

  2. Are the two balls within collision distance?

 Nudging:

Because of the discrete nature of the movement of the balls and because the Ballworld system uses a single-pass updating mechanism (vs. a two-pass system where updating behaviors are calculated on the first pass and executed on a second pass),  the balls may not be in the exact positions that one would expect them to be when they contact each other.

It is non-trivial to calculate the exact theoretical contact position of the two balls, so the AElasticMassCollisionCmd class pretends that the radius of the balls is exactly the sise such that the initial contact between the balls occurrs right at their current location.

In such, all calculations are based off of the "normal vector" which runs from the center of the source ball, through the point of contact between the balls, to the center of the target ball.  This is the line that is normal to the plane of contact between the two balls, if their radii where exactly the size such they just touched at their current locations.   A round or spherical surface can only exert a force along the normal to its tangential planes.

Theoretically, this normal line would be co-linear with the difference in velocities between the two balls (their relative motion, which is used to calculate the impulse), but in actuality, the two are not co-linear.

The shortest distance to move the source ball to get it out of collision distance with the target ball is along the normal direction.   A "nudge" factor is introduced to insure that that the source ball is far enough away to not "double collide" with the target ball.   (Why don't you move the target ball?)
