COMP 321 Lab 9

# Memory Mapped I/O

## Alan Cox and Scott Rixner

---

<footer><em>COMP 321 Spring 2025 • Alan Cox and Scott Rixner</em></footer>

---

# Memory Mapped I/O

- Map a file or device into the address space of the process
  - Memory is backed by the file/device
  - Access the file/device as if it were memory
- Allocate anonymous memory that is not backed by a file
  - Allows more flexibility than using `sbrk(2)`
  - Useful for shared memory between processes
- Memory is loaded “lazily”
  - Only the pages that are accessed are loaded into memory

---

# `mmap(2)`

```
void *mmap(void *addr[.length], size_t length, int prot, int flags, int fd, off_t offset);
```

- `addr`: Address at which to map the memory
- `length`: Length (in bytes) of the mapping
- `prot`: Protection flags (`PROT_READ`, `PROT_WRITE`, `PROT_EXEC`)
- `flags`: Mapping flags (`MAP_SHARED`, `MAP_PRIVATE`, `MAP_ANONYMOUS`)
- `fd`: File descriptor of the file to map
- `offset`: Offset into the file to start mapping
- Returns the address of the mapped memory on success, `MAP_FAILED` on failure

---

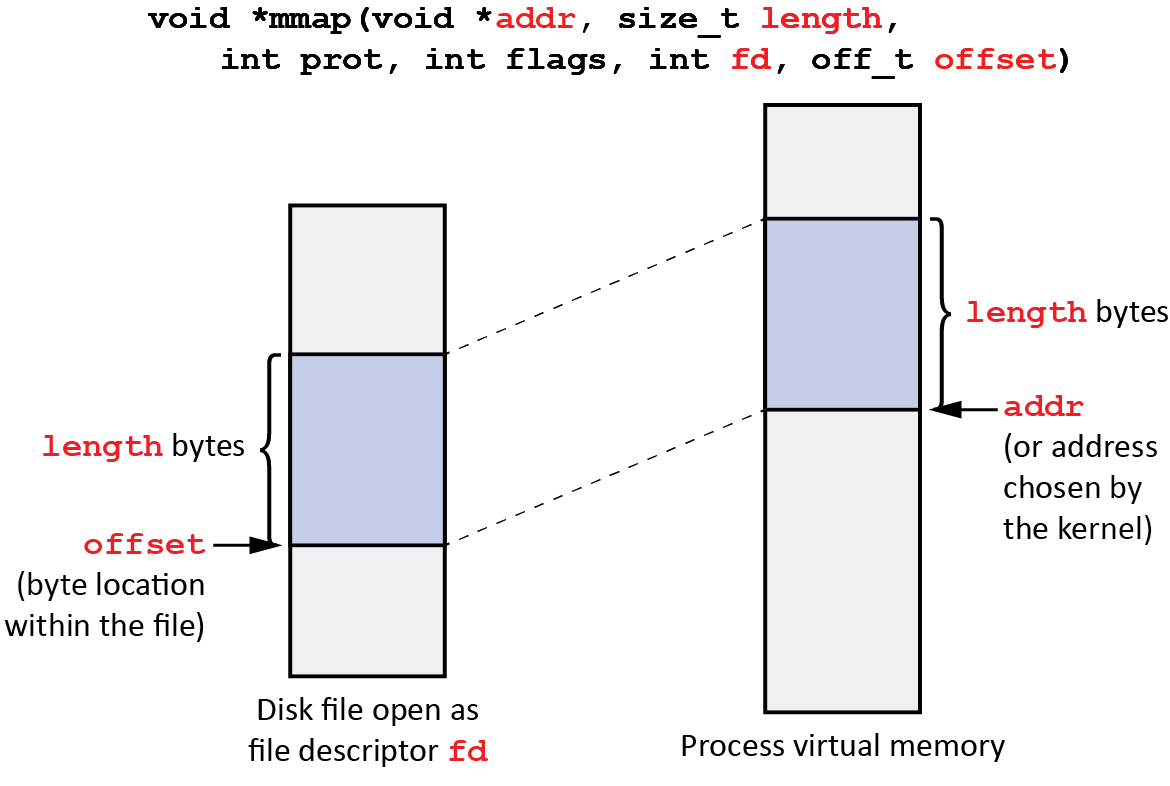

# `mmap(2)` Illustration

![mmap](mmap.png)

---

# `munmap(2)`

```
int munmap(void *addr[.length], size_t length);
```

- `addr`: Address of the memory to unmap
- `length`: Length (in bytes) of the mapping
- Returns 0 on success, -1 on failure
- Future accesses to region will result in a segmentation fault

---

# Some Use Cases of `mmap(2)`

- Handle very large files by allowing the operating system to manage the memory
- Perform random/sparse accesses into a file without `read(2)`, `write(2)` or `lseek(2)`
- Share memory between processes
- Efficient copying of data between files/devices
- Implement copy-on-write semantics

---

# Sparse File Access

```
// Check for errors
fd = open("sparse_file.dat", O_RDWR);
status = fstat(fd, &file_info)

mapped_mem = mmap(NULL, file_info.st_size, PROT_READ | PROT_WRITE, MAP_SHARED, fd, 0);
if (mapped_mem == MAP_FAILED) {
    perror("Failed to mmap file");
    close(fd);
    return 1;
}

// Perform sparse accesses to the file (non-contiguous reads/writes)
for (addr = mapped_mem; addr < mapped_mem + file_info.st_size; addr += 20000) {
    *addr = *addr + 10
}

if (munmap(mapped_mem, file_info.st_size) == -1) {
    perror("Failed to munmap");
    close(fd);
    return 1;
}

close(fd);
```
---

# Copy-On-Write (COW)

```
// Create an anonymous memory region using mmap (check for errors)
char *mem = mmap(NULL, size, PROT_READ | PROT_WRITE, MAP_PRIVATE | MAP_ANONYMOUS, -1, 0);

// Initialize memory region
strcpy(mem, "Hello, World!");
printf("Before fork: %s\n", mem);

pid_t pid = fork();

if (pid == 0) {
    strcpy(mem, "Child modified this text.");
    // Will print "Child modified this text."
    printf("Child process modified memory: %s\n", mem);
    exit(0);
} else if (pid > 0) {
    wait(NULL);
    // Will print "Hello, World!"
    printf("Parent process sees memory after child modification: %s\n", mem);
    munmap(mem, size);
} else {
    // Handle fork error
}
```

---

# Exercises

1. Access a file using `mmap(2)`
2. Modify file contents using copy-on-write leaving the file unmodified
3. Perform a fast file copy using `mmap(2)`
4. Use `mmap(2)` to share memory among processes

---

# Get Started!
