COMP 405 Spring 2014	Self-Modifying Finite State Machine Demo

The demo should load and display automatically.

In a nutshell, the demo shows a finite state machine with the ability to transition from state to state.   Run-time selectable options will modify the state transition behavior.  The tool tips in the demo will tell you most of what everything does.

Descriptons of Selected Operations

• The Make States button will add the designated number of new states to the system.  Every state will always have a unique identifying index value.
• The Make Transition Algo button will create a transition algorithm that, when the No-op option is selected, will create a circular transition path that will cycle through every available state exactly once.   Note that the transitions may not be in numerical order (to see this, make about 20 states).

Description of the Options  (Be sure to change back to No-op after you are done inserting or deleting!)

• No-op:  The system simply transitions to one of the available states.   The transitions are not modified.   This is considered the default behavior.
• Insert new state: Inserts a new state into the system and transitions to it.  The transitions are modified such that the  current state will always transition by default to the new state and the new state will transition to where the current state used to transition to.
• Delete state: Removes the next state in the transition order from the system and changes the transition algo so that the current state will by default transition to where the deleted state used to transition to.

The source code is available in the Comp405 repository:  https://svn.rice.edu/r/comp405/course/FSM_selfmod

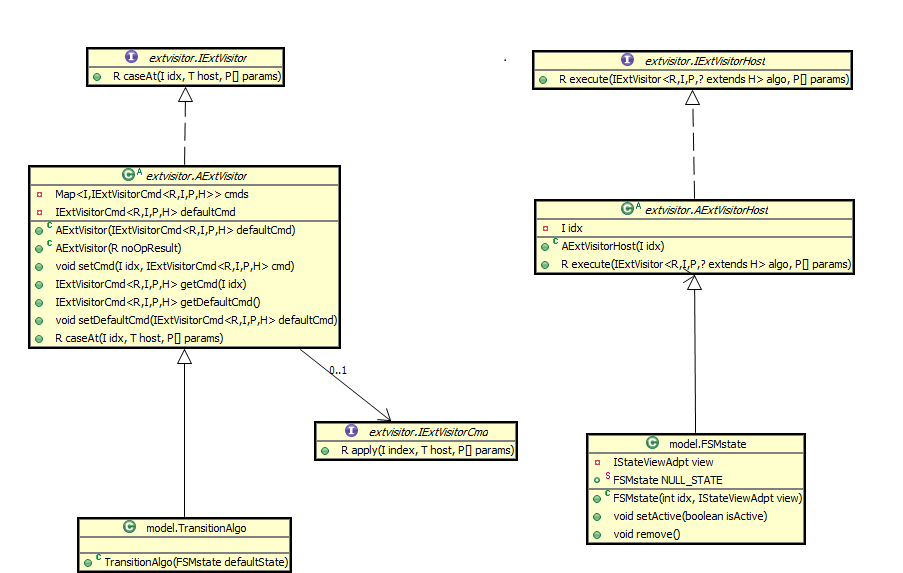

UML Diagram of the Extended Visitor Design Pattern Implementation
