Our Feedback Suppression System

In our modeling of this system we were unable to do the process in real time.  However, the devices with which we implemented this system are readily available. Thus it can easily be imagined that the same technology could be combined and implemented in a way that would actualize this system.

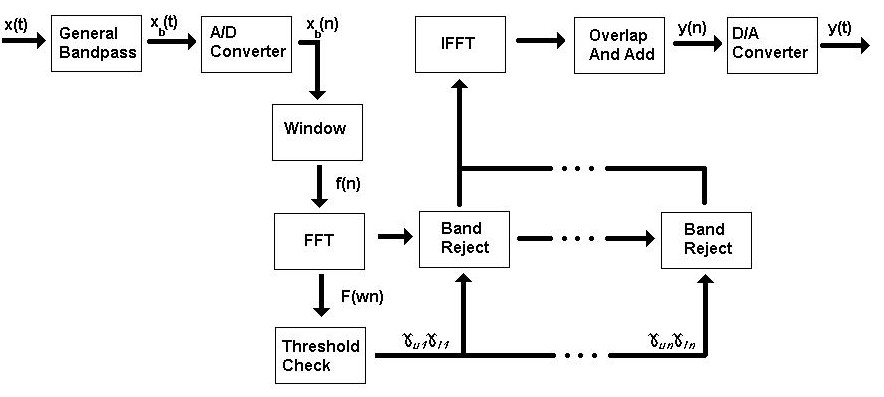

The block diagram of our system

General Bandpass

After some analysis of speech signals, we have determined a very safe bandwidth for speech that will cut out all frequencies that never occur in the signal.  This band pass goes from 20 Hz (the limit of hearing) to 10kHz (well above any s-type consonant sounds).
Although this project is for a digital signal processing class, this portion of our system would probably be best implemented with an analog bandpass before the signal is converted into a digital signal.  Thus the A/D converter does not need to sample as fast because speech does not contain these higher frequencies.

A/D Converter

For this experiment we recorded an analog speech signal as well as a feedback signal with a Sony “Portable MiniDisc Recorder” in conjunction with a Sony “ECM-MS907 Electret Condenser Microphone”.  The A/D converter in the minidisk player was set to sample a stereo input at 22.050 kHz. The mic was set to a 90 degree hypercardioid  sensitivity shape.

·    Type Mid-Side Stereo; Electret Condenser Microphone
·    Directivity Uni-Directional (stereo); Directive angle 90 or 120° (switchable)
·    Effective Output Level -56 dBm ±4dB (0dB=1mW/Pa, 1kHz)
·    Output Impedance 1 kohms ±20%, unbalanced
·    Frequency Response 100 - 15,000Hz
·    Maximum Sound Pressure Level Input more than 110dB SPL

The following filters, computations and algorithms are all implemented in the software program Matlab 6.1.


This is the first step of the analysis and filtering of the signal.  The processor uses a technique called windowing that basically cuts the signal into smaller pieces so that it can process the speech as a finite length signal.

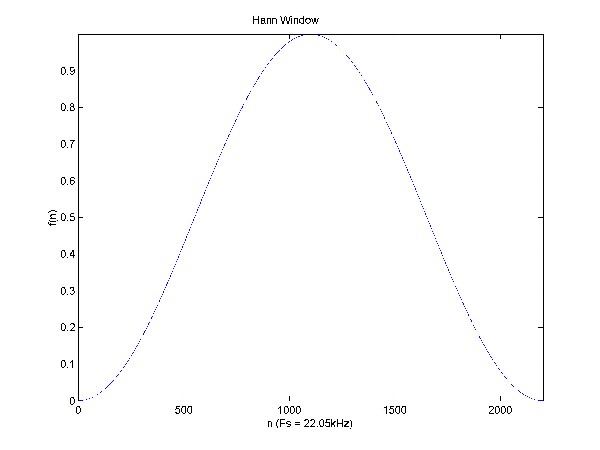

For our particular process we will be using a Hann window.  This window of length n is described by the equation

w[ k + 1 ] = 0.5( 1- cos(2*pi*k/(n-1))  where k =  0, 1, … n-1
else w[n] = 0

This window is multiplied in the time domain with the signal so that the only a piece of the signal comes through in the analysis.  The reason we use a smooth filter like Hann instead of a triangle or square window is that it causes less distortion in the frequency domain.  Once we have windowed this .1 second portion of the signal we begin analysis for the feedback filter.


This yields a discrete signal in frequency domain.  f(n) -> F(wn)

Threshold Check

After we have taken the FFT of our signal we scan the signal for high power portions.   We set a threshold depending on the duration of window and in the case that part of the signal is above the threshold the program records the lower and upper bounds of the section of the signal that is above the threshold power.  These bounds are recoded for each frequency w that is above the threshold.  The bounds are then input into the band reject portion of the filter.

Band Reject at w

The band reject filter is the key to this suppression system.  The way it works is that it receives threshold boundaries from the threshold check portion of the system.  Then it uses those boundaries to compute an H(z) which will then be multiplied by the signal to yield the filtered signal.

F(z) * H(z) = Y(z)

In this case the band reject filter is found using the following function.

H(z) =  z^ –2  –  (2ka z^ –1 / (k+1)) + ((k–1) / ( k+1))
            z^ –2(k–1) / ( k+1) –  (2a z^ –1 / (k+1)) + 1

 z  = (1+jw) / (1–jw)
a = cos(( g u + g l ) / 2) /  cos(( g u – g l ) / 2)
 k = tan(( g u – g l ) / 2) tan( b / 2)

 b  = cut-off frequency of model lowpass filter
 g u , g l = desired  upper and lower characteristic frequencies of new filter


Once the feedback signals have all been filtered we implement an Inverse Fast Fourier Transform to return our signal to the time domain.  F(wn) -> f(n)

Overlap and Add

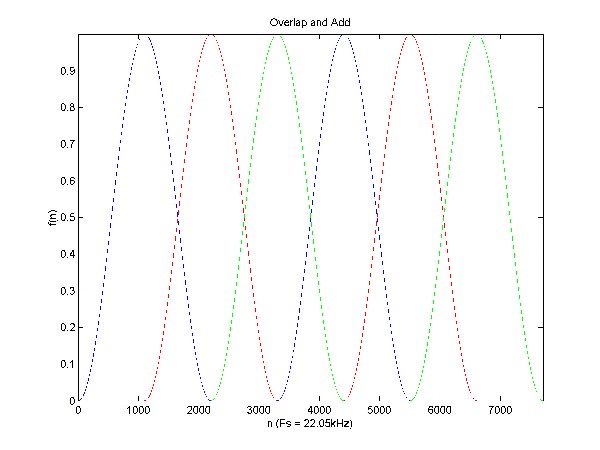

This portion takes each of the filtered windows and adds them back together as seen in the “overlap and add figure”.  This will reproduce our original signal.


D/A Converter

This is simply the internal D/A converter within the PC.  It takes the Matlab vector and turns it back into an analog signal that is output through the speakers on the PC.
