Test Input 1

Inputs:

    X = FFh

    D = FFh

Final Output:

    Error = 01h

TEST 1,0 = 10 => DBG 3,2 = Multiplier Input B (1,0) & DBG 1,0 = Multiplier Input A (1,0)

    *NOTE: DBG3-0 are inverted and X7 is not shown (space limitation in OMNILAB) but is 1

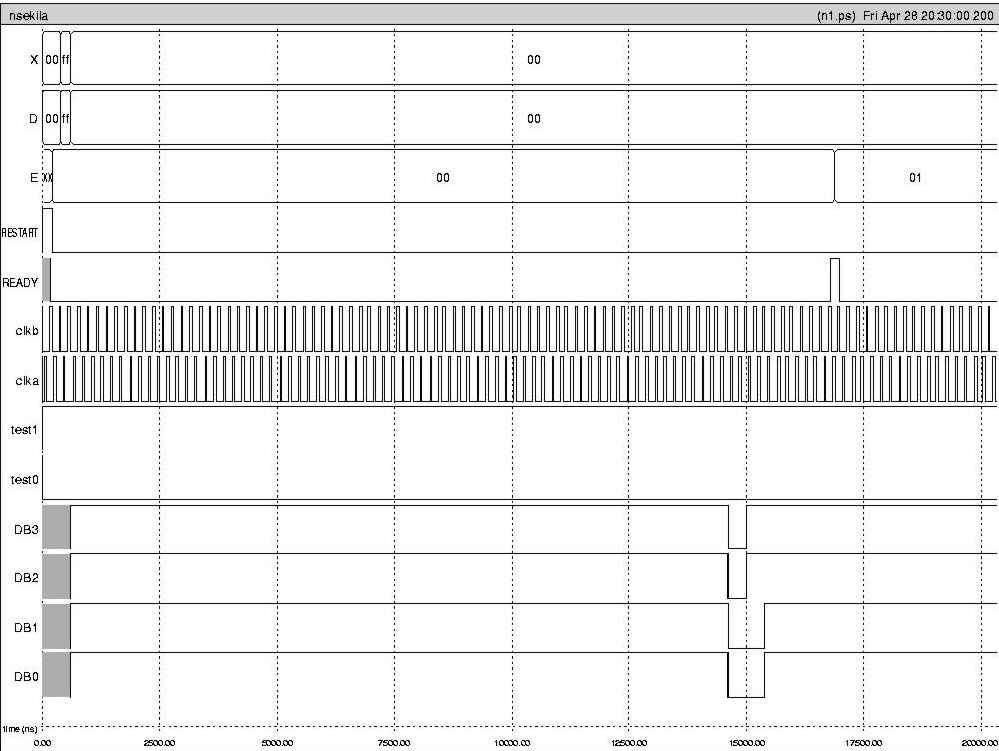

Error Calculation Phase

OMNILAB

IRSIM

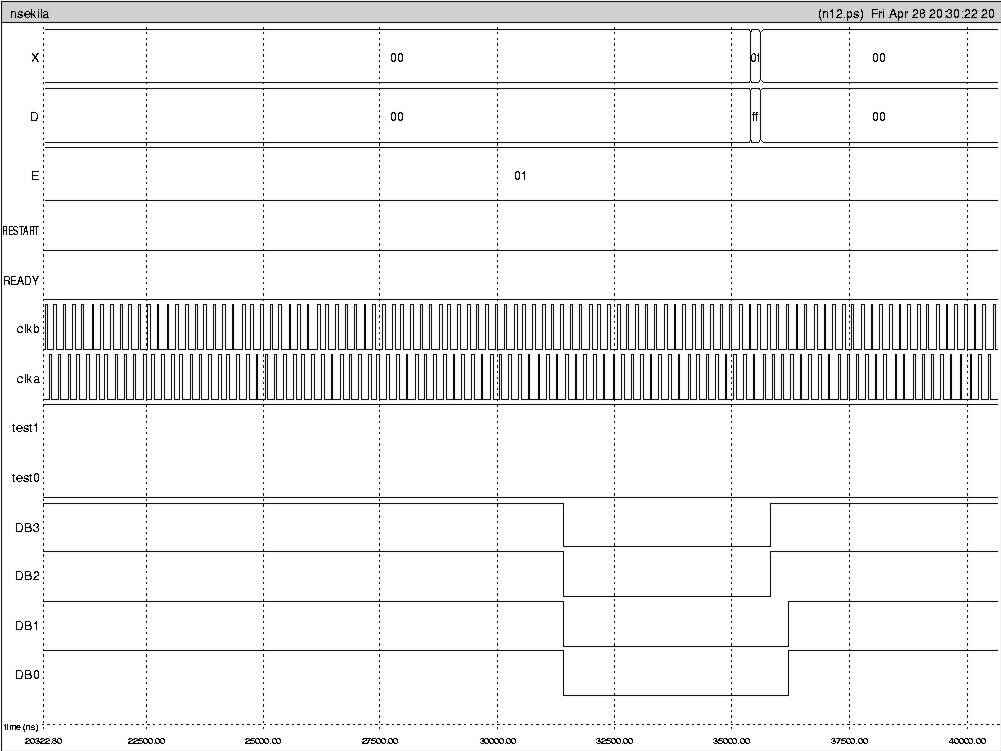

Weight Update Phase

OMNILAB

IRSIM
