Test Input 2

Inputs:

    X = 0Fh

    D = FFh

Final Output:

    Error = 01h

TEST 1,0 = 10 => DBG 3,2 = Multiplier Input B (1,0) & DBG 1,0 = Multiplier Input A (1,0)

*NOTE: DBG3-0 are inverted and X7 is not shown (space limitation in OMNILAB) but is 0

Error Calculation Phase

OMNILAB

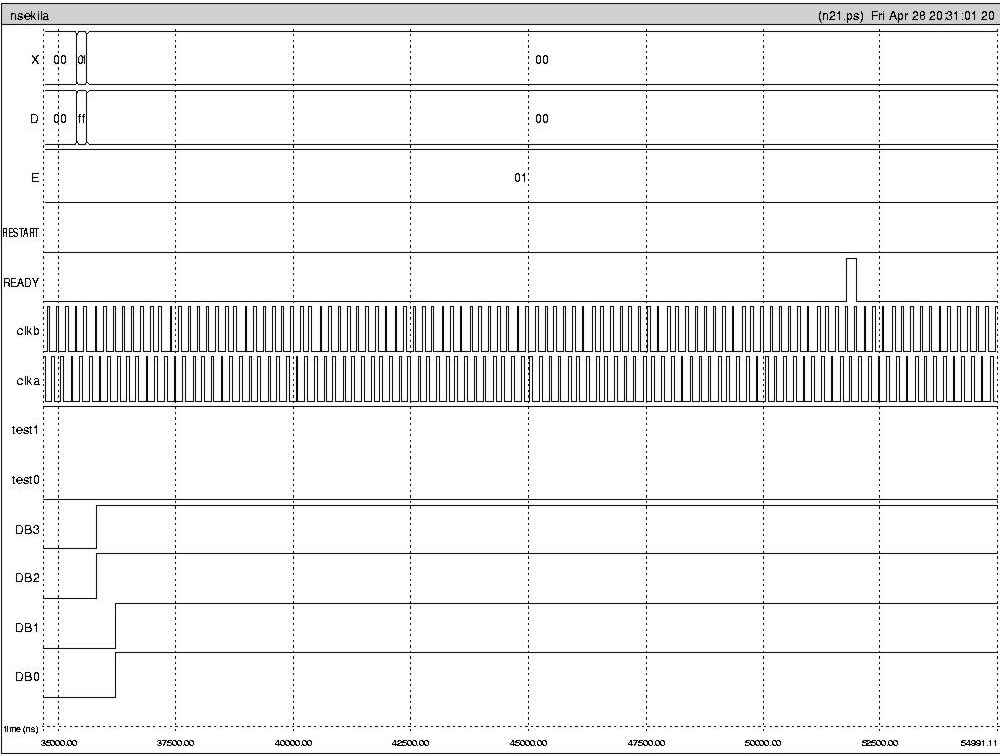

IRSIM

Weight Update Phase

OMNILAB

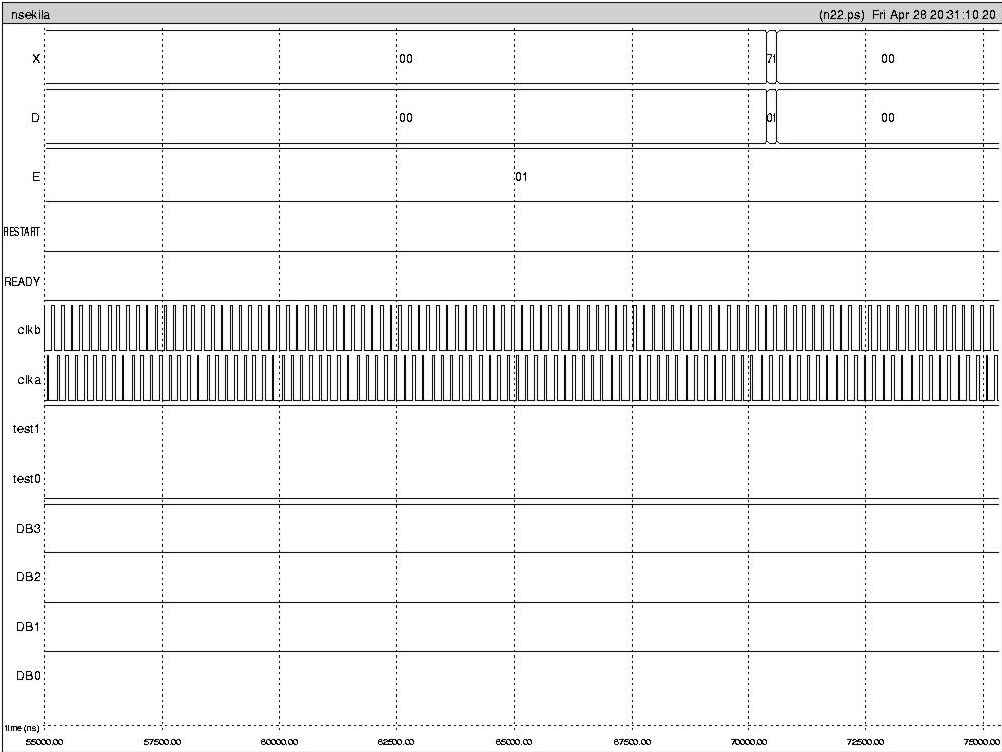

IRSIM
