Test Input 3

Inputs:

    X = 7Fh

    D = 0Fh

Final Output:

    Error = F0h

Debug Outputs:

    TEST 1,0 = 01 => DBG 3-0 = Multiplier Product 3-0

*NOTE: DBG3-0 are inverted and X7 is not shown (space limitation in OMNILAB) but is 0

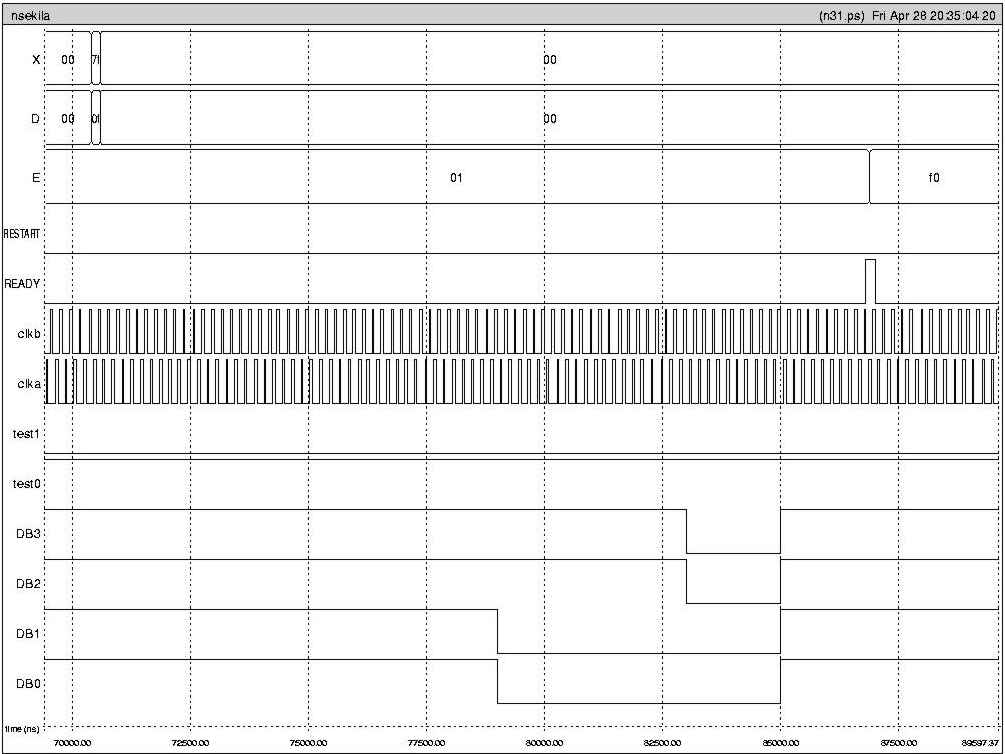

Error Calculation Phase

OMNILAB

IRSIM

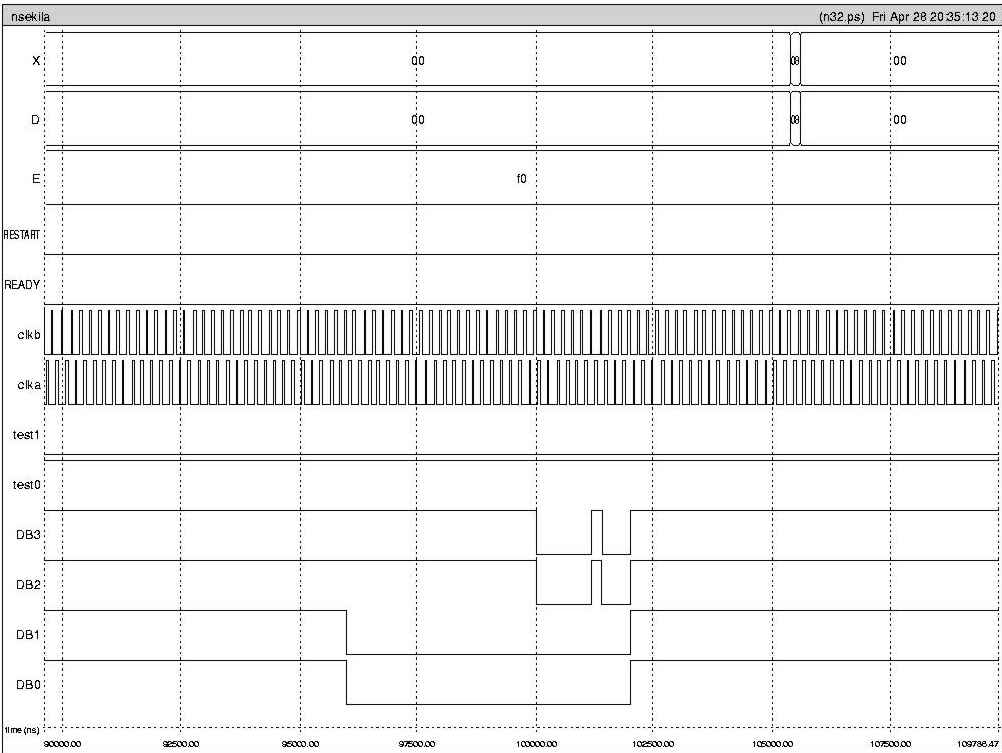

Weight Update Phase

OMNILAB

IRSIM
