Test Input 4

Inputs:

    X = 08h

    D = 08h

Final Output:

    Error = F8h

Debug Outputs:

    TEST 1,0 = 11 => DBG 3,2 = Adder Input B (1,0) & DBG 1,0 = Adder Input A (1, 0)

*NOTE: DBG3-0 are inverted and X7 is not shown (space limitation in OMNILAB) but is 0

Error Calculation Phase

OMNILAB

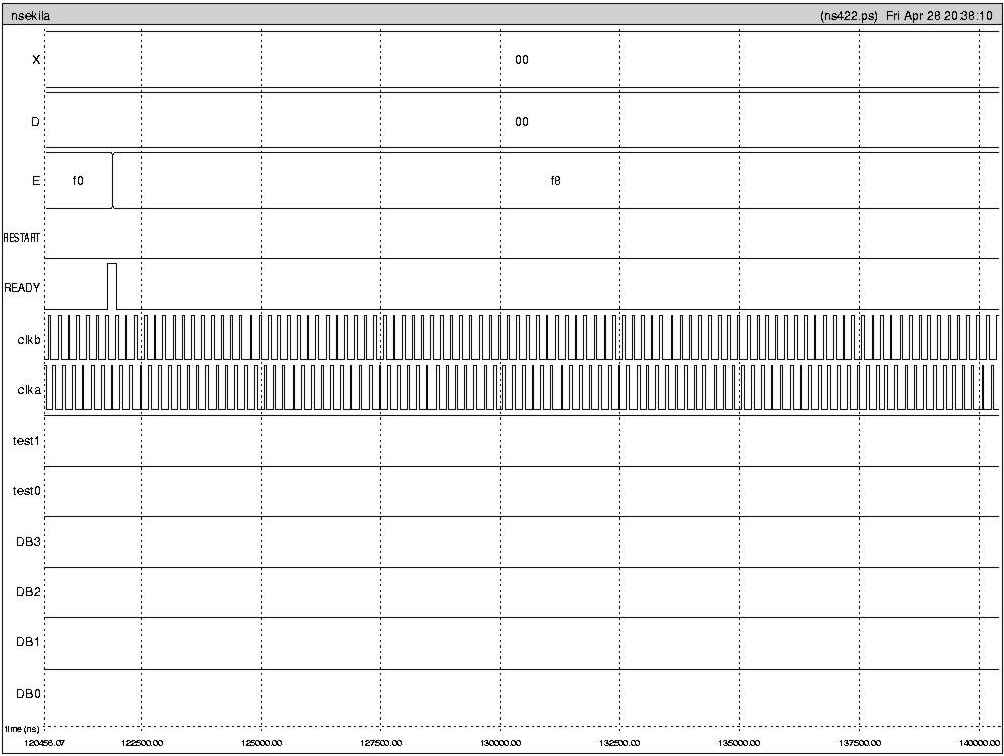

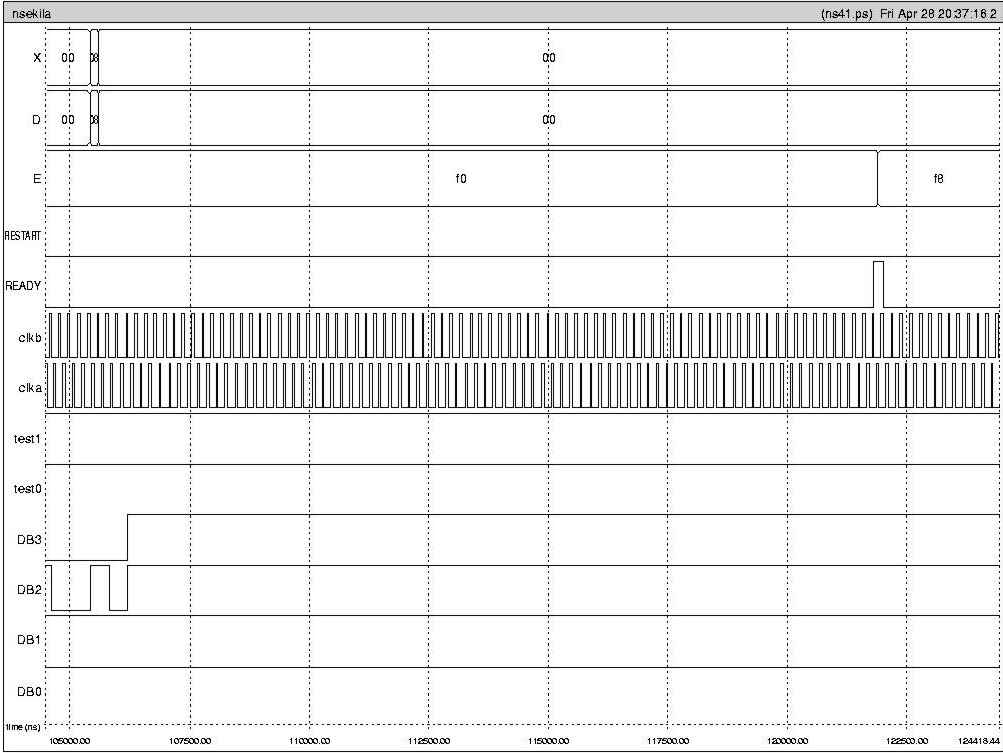

IRSIM

Weight Update Phase

OMNILAB

IRSIM
