Carry Look-Ahead Adder



We chose the static carry-look ahead adder for a number of reasons based on a balance between size and speed. The fastest design implements a parallel structure, where each bit is calculated simultaneously. We were unable to utilize this design because of our chip real estate limitations. On the other hand, a serial adder is characterized by one of the simplest transistor structures, but is excruciatingly slow. We then examined the carry-look ahead adder, which is faster than the serial adder because the carry bit is calculated parallel to the XOR operation on the inputs bits. We had the option of going with a dynamic carry structure or a static structure. We decided to use a static structure to avoid timing problems associated with dynamic clocked circuits and latching of outputs for valid signals.

However, even an 8-bit carry-lookahead adder would go beyond our chip real-estate limits, for reasons described in the following. Thus, we implemented two 4-bit carry-lookahead adders, connected in a serial fashion.

The carry-lookahead adder equations are as follows:





The carry-lookahead adder follows this block diagram:

The carry-lookahead adder consists of a propagate/generate generator, a sum generator, and a carry generator. Since we use twos-complement arithmetic, the adder also doubles as a subtractor; for the latter function, the B input to the adder must be inverted, and the carry-in to the lower adder must be "1".

Propagate/generate generator

The propagate generator XORs the input bits together to determine if this bit position propagates a previous carry. The result of the propagate generator is used directly in generating the sum bits. The generate generator ANDs input bits together in order to determine if this bit position will generate a new carry. The standard XOR and AND gates used are the same as in the boolean unit.

Sum Generator

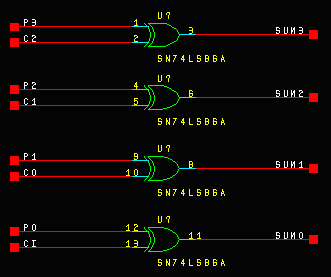

The sum generator XORs the carry-in calculated from the previous two bits and the XOR (propagate) of the current two bits--hence the name carry look-ahead adder.

Carry Generator

The carry generator in the CLA takes as its inputs the propagate/generate signals and generates a carry for the next bit. We then find the XOR of this carry bit with the next propagate bit (AND of two input bits) to generate the sum. The carry generator was broken up into bitwise carries to not only economize on space, but to also illustrate the tendency of the carry block to "blow up" as more bits are added. It is because of this that carry-lookahead adders are limited to 4-bits and are subsequently placed in sequence (connecting the final carry-out of the lower-order adder to the carry-in of the higher-order adder) for larger input combinations.

The logic shown below implements the carry-lookahead equations described above.
