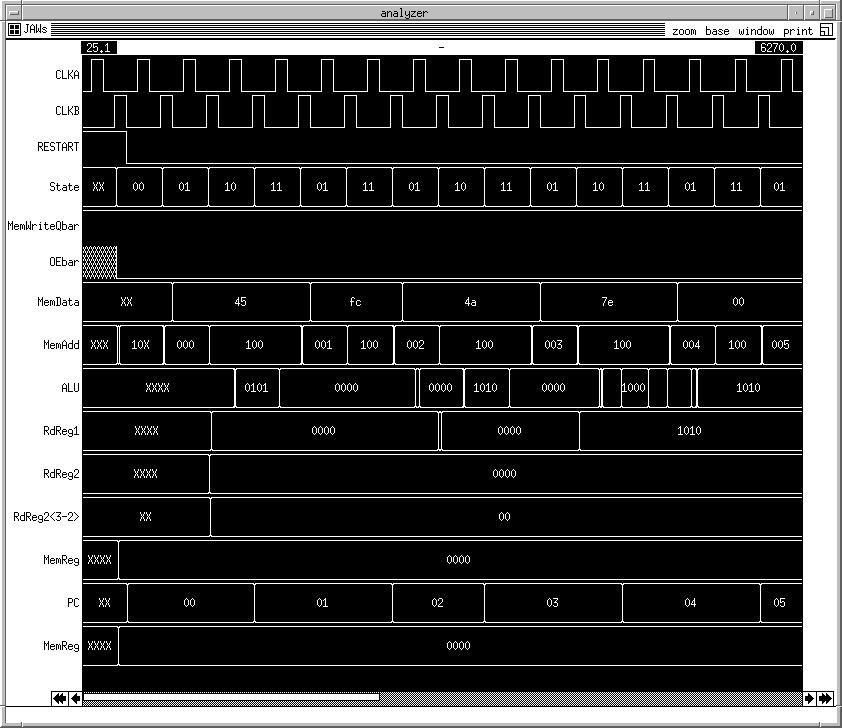

Instruction Sequence:
Restart of the chip ...
ADDI0101
ZERO1100
ADDI1010
SLL1110
NOOP
| This file is designed to verify the paths through the muxes fourimm2 and alusrc2. | We first note that we have already verified the path through alusrc2 when its control signal is a 0 through | testing done in regpaths.cmd | Also in regpaths.cmd testing we also saw that SLLXX01 does in fact present a 01 to the ALU because the ALU result was a shift | of one bit to the left. Therefore, we only need to test SLLXX10 to ensure that the paths for SLL are correct. | We will check the alusrc2mux lines for when the control signal is one by using addi. logfile cpu.log clock CLKA 0 1 0 0 clock CLKB 0 0 0 1 | pin vectors vector MemData MemData<7> MemData<6> MemData<5> MemData<4> MemData<3> MemData<2> MemData<1> MemData<0> vector MemAdd MemAdd<8> MemAdd<7> MemAdd<6> MemAdd<5> MemAdd<4> MemAdd<3> MemAdd<2> MemAdd<1> MemAdd<0> vector State StBit0 StBit1 vector RdReg1 RegA<3> RegA<2> RegA<1> RegA<0> vector RdReg2<3-2> RegB<3> RegB<2> vector ALU ALU<3> ALU<2> ALU<1> ALU<0> | core vectors vector PostMemData PostMemData<7> PostMemData<6> PostMemData<5> PostMemData<4> PostMemData<3> PostMemData<2> PostMemData<1> PostMemData<0> vector PC PC<7> PC<6> PC<5> PC<4> PC<3> PC<2> PC<1> PC<0> vector SelectedPC SelectedPC<7> SelectedPC<6> SelectedPC<5> SelectedPC<4> SelectedPC<3> SelectedPC<2> SelectedPC<1> SelectedPC<0> vector PCin PCin<7> PCin<6> PCin<5> PCin<4> PCin<3> PCin<2> PCin<1> PCin<0> vector PInF PInF<7> PInF<6> PInF<5> PInF<4> PInF<3> PInF<2> PInF<1> PInF<0> vector Add1in Add1in<7> Add1in<6> Add1in<5> Add1in<4> Add1in<3> Add1in<2> Add1in<1> Add1in<0> vector PAdd1 PAdd1<7> PAdd1<6> PAdd1<5> PAdd1<4> PAdd1<3> PAdd1<2> PAdd1<1> PAdd1<0> vector incPC incPC<7> incPC<6> incPC<5> incPC<4> incPC<3> incPC<2> incPC<1> incPC<0> vector PMRS PMRS<3> PMRS<2> PMRS<1> PMRS<0> vector MemReg RMDATA<3> RMDATA<2> RMDATA<1> RMDATA<0> vector intRegA intRegA<3> intRegA<2> intRegA<1> intRegA<0> vector RdReg2 intRegB<3> intRegB<2> intRegB<1> intRegB<0> vector PID PID<3> PID<2> PID<1> PID<0> vector PM2R PM2R<3> PM2R<2> PM2R<1> PM2R<0> vector MImm MImm<3> MImm<2> MImm<1> MImm<0> vector P4I P4I<3> P4I<2> P4I<1> P4I<0> vector PSrc2 PSrc2<3> PSrc2<2> PSrc2<1> PSrc2<0> vector PALU PALU<3> PALU<2> PALU<1> PALU<0> vector WBData WBData<3> WBData<2> WBData<1> WBData<0> vector PIR3 PIR3<1> PIR3<0> vector intState intStBit0 intStBit1 vector Ins Ins<7> Ins<6> Ins<5> Ins<4> Ins<3> Ins<2> Ins<1> Ins<0> | pin ana's ana CLKA CLKB Restart State MemWriteQbar OEbar MemData MemAdd ALU RdReg1 RdReg2 RdReg2<3-2> MemReg |ana intRestart |ana PostMemData |ana Ins |ana InF |ana intState |ana ClearRegs |ana ImpReg3 |ana FourImm |ana ALUSrc2 |ana RegWrite |ana Mem2Reg |ana ImmData |ana Branch |ana SetPC |ana RegRead |ana PCstore |ana PCstorebar ana PC |ana Add1in |ana EQZ GTZ |ana PBZ |ana PCSelect |ana PCin |ana PInF |ana PAdd1 |ana incPC |ana SelectedPC |ana PCin |ana PMRS ana MemReg |ana PALU |ana WBData |ana MImm |ana PM2R |ana PIR3 |ana intRegA |ana RdReg2 |ana PID |ana PM2R |ana MImm |ana P4I |ana PSrc2 |ana PALU |ana WBData |ana PIR3 |ana Vdd |ana GND #define ADDD 0101 #define ADDI 0100 #define SUB 0001 #define SLL 0111 #define NOT 0110 #define AND 0010 #define OR 0011 #define LW 1101 #define LDI 1100 #define SW 1001 #define SETMI 1000 #define BEZ 1010 #define BGZ 1011 #define NOOP 00000000 #define ZERO 1111 #define SETM 1110 #define HIZ XXXXXXXX V RESTART 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 V MemData HIZ HIZ ADDI0101 HIZ HIZ ZERO1100 HIZ ADDI1010 HIZ HIZ SLL1110 HIZ HIZ NOOP NOOP R
