Program Counter Path Verification

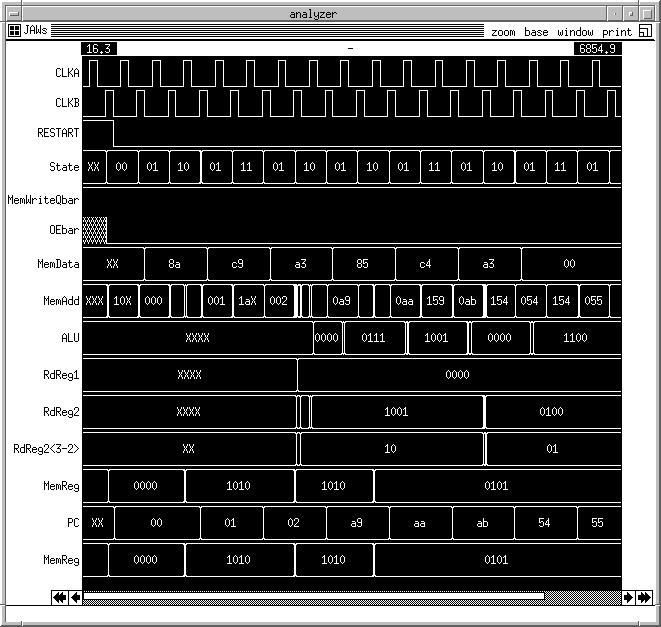

This test is designed to verify that the data path for the add1 loop propigates all logic values on all lines correctly. This test also verifies that the branch mux correctly passes all logic values on all lines.

Instruction Sequence:
Restart of the chip ...
SETMI1010
LDI1001
BEZ0011
SETMI0101
LDI0100
BEZ0011
NOOP0000

| This file is designed to verify that the data path for the add1 loop propigate
s all logic values on all lines correctly
| This file also verifies that the branch mux correctly passes all logic values on all lines.

logfile cpu.log

clock CLKA     0 1 0 0
clock CLKB     0 0 0 1

| pin vectors
vector MemData MemData<7> MemData<6> MemData<5> MemData<4> MemData<3> MemData<2> MemData<1> MemData<0>
vector MemAdd  MemAdd<8> MemAdd<7> MemAdd<6> MemAdd<5> MemAdd<4> MemAdd<3> MemAdd<2> MemAdd<1> MemAdd<0>
vector State   StBit0 StBit1
vector RdReg1 RegA<3> RegA<2> RegA<1> RegA<0>
vector RdReg2<3-2> RegB<3> RegB<2>
vector ALU ALU<3> ALU<2> ALU<1> ALU<0>

| core vectors
vector PostMemData PostMemData<7> PostMemData<6> PostMemData<5> PostMemData<4> PostMemData<3> PostMemData<2> PostMemData<1> PostMemData<0>
vector PC PC<7> PC<6> PC<5> PC<4> PC<3> PC<2> PC<1> PC<0>
vector SelectedPC SelectedPC<7> SelectedPC<6> SelectedPC<5> SelectedPC<4> SelectedPC<3> SelectedPC<2> SelectedPC<1> SelectedPC<0>
vector PCin PCin<7> PCin<6> PCin<5> PCin<4> PCin<3> PCin<2> PCin<1> PCin<0>
vector PInF PInF<7> PInF<6> PInF<5> PInF<4> PInF<3> PInF<2> PInF<1> PInF<0>
vector Add1in Add1in<7> Add1in<6> Add1in<5> Add1in<4> Add1in<3> Add1in<2> Add1in<1> Add1in<0>
vector PAdd1 PAdd1<7> PAdd1<6> PAdd1<5> PAdd1<4> PAdd1<3> PAdd1<2> PAdd1<1> PAdd1<0>
vector incPC incPC<7> incPC<6> incPC<5> incPC<4> incPC<3> incPC<2> incPC<1> incPC<0>
vector PMRS PMRS<3> PMRS<2> PMRS<1> PMRS<0>
vector MemReg RMDATA<3> RMDATA<2> RMDATA<1> RMDATA<0>
vector intRegA intRegA<3> intRegA<2> intRegA<1> intRegA<0>
vector RdReg2 intRegB<3> intRegB<2> intRegB<1> intRegB<0>
vector PID PID<3> PID<2> PID<1> PID<0>
vector PM2R PM2R<3> PM2R<2> PM2R<1> PM2R<0>
vector MImm MImm<3> MImm<2> MImm<1> MImm<0>
vector P4I P4I<3> P4I<2> P4I<1> P4I<0>
vector PSrc2 PSrc2<3> PSrc2<2> PSrc2<1> PSrc2<0>
vector PALU PALU<3> PALU<2> PALU<1> PALU<0>
vector WBData WBData<3> WBData<2> WBData<1> WBData<0>
vector PIR3 PIR3<1> PIR3<0>
vector intState intStBit0 intStBit1
vector Ins Ins<7> Ins<6> Ins<5> Ins<4> Ins<3> Ins<2> Ins<1> Ins<0>

| pin ana's
ana CLKA CLKB Restart State MemWriteQbar OEbar MemData MemAdd ALU RdReg1 RdReg2 RdReg2<3-2> MemReg

|ana intRestart
|ana PostMemData
|ana Ins
|ana InF
|ana intState
|ana ClearRegs
|ana ImpReg3
|ana FourImm
|ana ALUSrc2
|ana RegWrite
|ana Mem2Reg
|ana ImmData
|ana Branch
|ana SetPC
|ana RegRead
|ana PCstore
|ana PCstorebar
ana PC
|ana Add1in
|ana EQZ GTZ
|ana PBZ
|ana PCSelect
|ana PCin
|ana PInF
|ana PAdd1
|ana incPC
|ana SelectedPC
|ana PCin
|ana PMRS
ana MemReg
|ana PALU
|ana WBData
|ana MImm
|ana PM2R
|ana PIR3
|ana intRegA
|ana RdReg2
|ana PID
|ana PM2R
|ana MImm
|ana P4I
|ana PSrc2
|ana PALU
|ana WBData
|ana PIR3
|ana Vdd
|ana GND



V RESTART   1   0   0         0   0       0   0       0    0     0   0         0   0       0   0       0   0     0    0    0
V  MemData  XXXXXXXX XXXXXXXX 10001010 XXXXXXXX 11001001 XXXXXXXX 10100011 XXXXXXXX 10000101 XXXXXXXX 11000100 XXXXXXXX 10100011 XXXXXXXX 00000000 XXXXXXXX
