Instruction Sequence:
Restart of the chip ...
LDI0001
OR0011
SLL0001
OR0100
SLL0101
OR1001
SLL1001
ZERO1100
OR1110
SW1100
NOOP

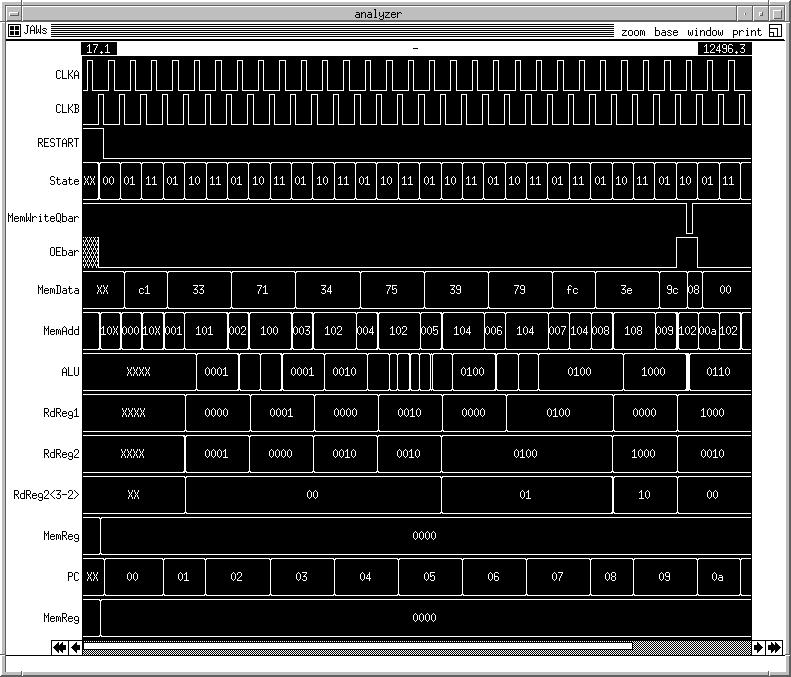

| This file is designed to verify that the registers can all be accessed and written to. The file verifies that the read and writeback | paths function properly for all logic values. | Also shows that ImpReg3 passes all logic values correctly. | Verifies the latches in the register read and writeback paths. logfile cpu.log clock CLKA 0 1 0 0 clock CLKB 0 0 0 1 | pin vectors vector MemData MemData<7> MemData<6> MemData<5> MemData<4> MemData<3> MemData<2> MemData<1> MemData<0> vector MemAdd MemAdd<8> MemAdd<7> MemAdd<6> MemAdd<5> MemAdd<4> MemAdd<3> MemAdd<2> MemAdd<1> MemAdd<0> vector State StBit0 StBit1 vector RdReg1 RegA<3> RegA<2> RegA<1> RegA<0> vector RdReg2<3-2> RegB<3> RegB<2> vector ALU ALU<3> ALU<2> ALU<1> ALU<0> | core vectors vector PostMemData PostMemData<7> PostMemData<6> PostMemData<5> PostMemData<4> PostMemData<3> PostMemData<2> PostMemData<1> PostMemData<0> vector PC PC<7> PC<6> PC<5> PC<4> PC<3> PC<2> PC<1> PC<0> vector SelectedPC SelectedPC<7> SelectedPC<6> SelectedPC<5> SelectedPC<4> SelectedPC<3> SelectedPC<2> SelectedPC<1> SelectedPC<0> vector PCin PCin<7> PCin<6> PCin<5> PCin<4> PCin<3> PCin<2> PCin<1> PCin<0> vector PInF PInF<7> PInF<6> PInF<5> PInF<4> PInF<3> PInF<2> PInF<1> PInF<0> vector Add1in Add1in<7> Add1in<6> Add1in<5> Add1in<4> Add1in<3> Add1in<2> Add1in<1> Add1in<0> vector PAdd1 PAdd1<7> PAdd1<6> PAdd1<5> PAdd1<4> PAdd1<3> PAdd1<2> PAdd1<1> PAdd1<0> vector incPC incPC<7> incPC<6> incPC<5> incPC<4> incPC<3> incPC<2> incPC<1> incPC<0> vector PMRS PMRS<3> PMRS<2> PMRS<1> PMRS<0> vector MemReg RMDATA<3> RMDATA<2> RMDATA<1> RMDATA<0> vector intRegA intRegA<3> intRegA<2> intRegA<1> intRegA<0> vector RdReg2 intRegB<3> intRegB<2> intRegB<1> intRegB<0> vector PID PID<3> PID<2> PID<1> PID<0> vector PM2R PM2R<3> PM2R<2> PM2R<1> PM2R<0> vector MImm MImm<3> MImm<2> MImm<1> MImm<0> vector P4I P4I<3> P4I<2> P4I<1> P4I<0> vector PSrc2 PSrc2<3> PSrc2<2> PSrc2<1> PSrc2<0> vector PALU PALU<3> PALU<2> PALU<1> PALU<0> vector WBData WBData<3> WBData<2> WBData<1> WBData<0> vector PIR3 PIR3<1> PIR3<0> vector intState intStBit0 intStBit1 vector Ins Ins<7> Ins<6> Ins<5> Ins<4> Ins<3> Ins<2> Ins<1> Ins<0> | pin ana's ana CLKA CLKB Restart State MemWriteQbar OEbar MemData MemAdd ALU RdReg1 RdReg2 RdReg2<3-2> MemReg |ana intRestart |ana PostMemData |ana Ins |ana InF |ana intState |ana ClearRegs |ana ImpReg3 |ana FourImm |ana ALUSrc2 |ana RegWrite |ana Mem2Reg |ana ImmData |ana Branch |ana SetPC |ana RegRead |ana PCstore |ana PCstorebar ana PC |ana Add1in |ana EQZ GTZ |ana PBZ |ana PCSelect |ana PCin |ana PInF |ana PAdd1 |ana incPC |ana SelectedPC |ana PCin |ana PMRS ana MemReg |ana PALU |ana WBData |ana MImm |ana PM2R |ana PIR3 |ana intRegA |ana RdReg2 |ana PID |ana PM2R |ana MImm |ana P4I |ana PSrc2 |ana PALU |ana WBData |ana PIR3 |ana Vdd |ana GND #define ADDD 0101 #define ADDI 0100 #define SUB 0001 #define SLL 0111 #define NOT 0110 #define AND 0010 #define OR 0011 #define LW 1101 #define LDI 1100 #define SW 1001 #define SETMI 1000 #define BEZ 1010 #define BGZ 1011 #define NOOP 00000000 #define ZERO 1111 #define SETM 1110 #define HIZ XXXXXXXX V RESTART 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 V MemData HIZ HIZ LDI0001 HIZ OR0011 HIZ HIZ SLL0001 HIZ HIZ OR0100 HIZ HIZ SLL0101 HIZ HIZ OR1001 HIZ HIZ SLL1001 HIZ HIZ ZERO1100 HIZ OR1110 HIZ HIZ SW1100 HIZ NOOP HIZ R
