Matlab FEA Software |
|
-- Source Files -- |
-- Comments -- |
|
|
|
|
Akin cylinder w convection (.m) |
Manual FEA with 3 L2 and 1 P1 elements |
|

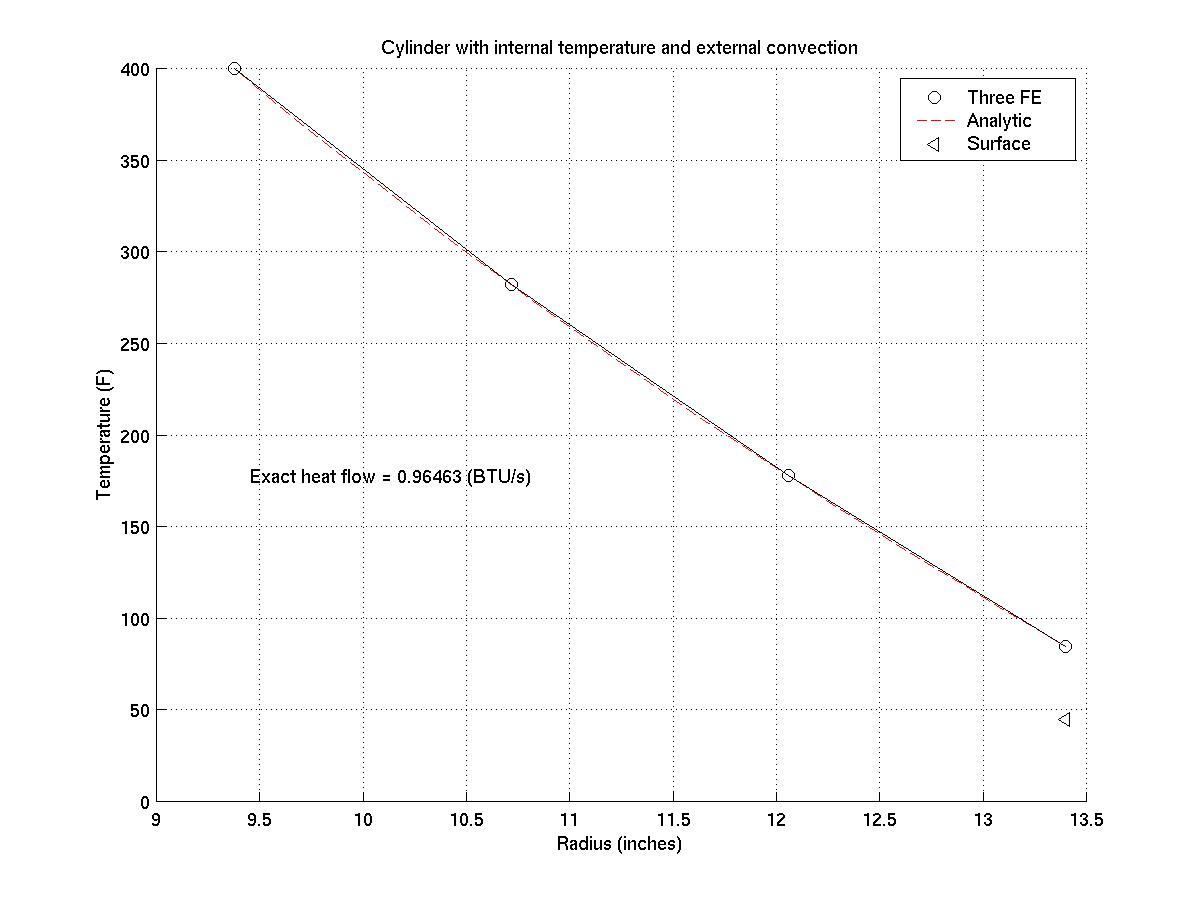

Akin cylinder w convection plot (jpg) |
Plot FEA and exact results |
|
Akin source for Chapman Ex 2.2 (.m) |
Manual FEA with 3 L2 and 2 P1 elements |
|

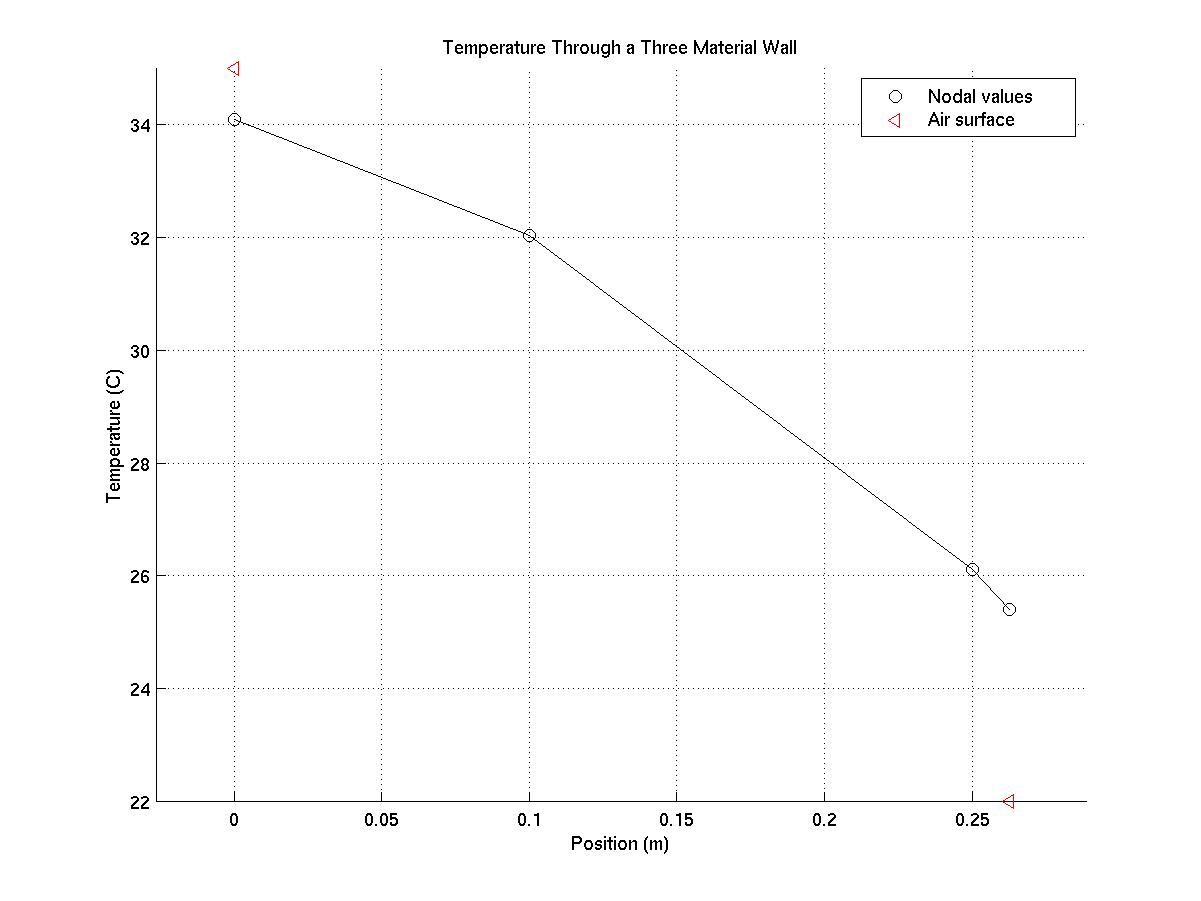

Three layer wall temperatures plot (jpg) |
Plot FEA and air temperatures |
|
Akin source for Uxx+U+Q=0 for 2 EBC (.m) |
FEA Q(x)=x with 3 L2 elements |
|

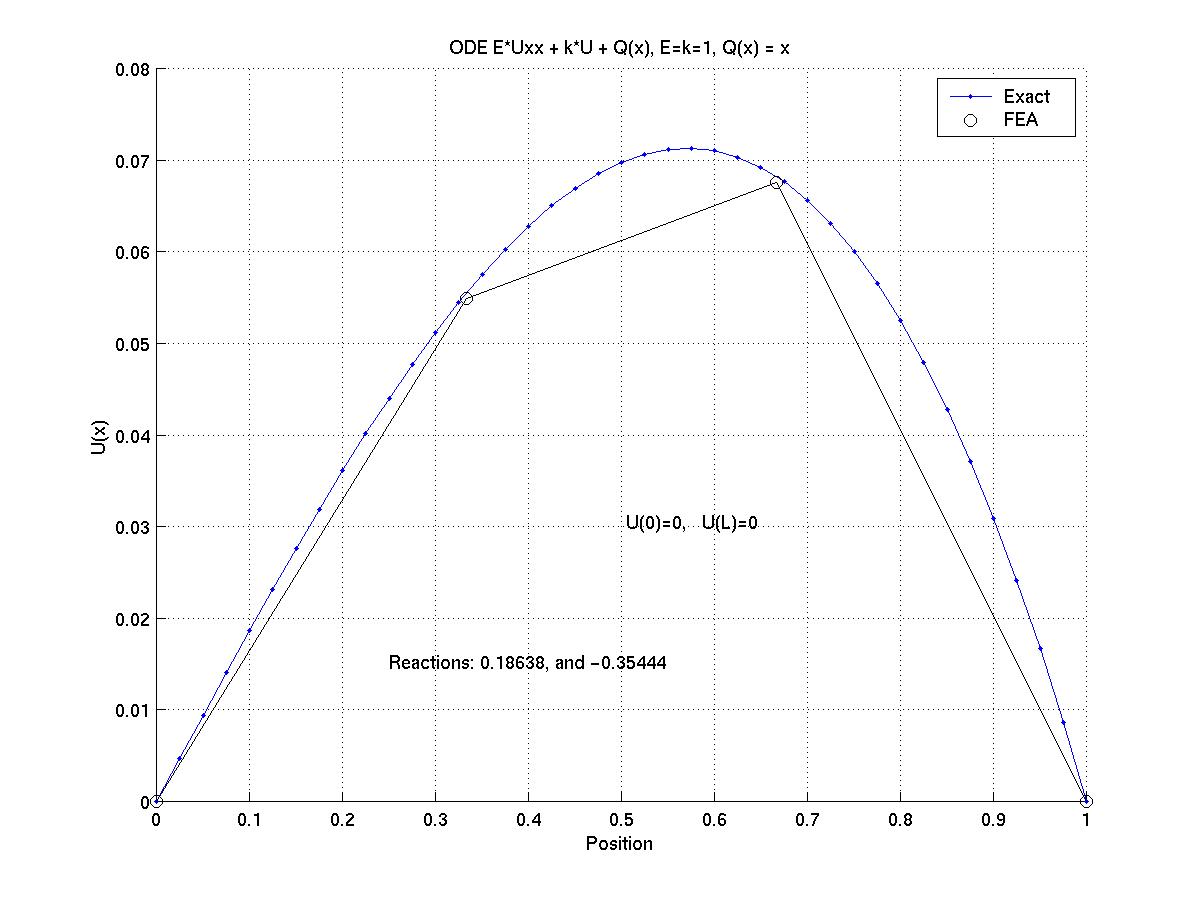

Three element U(0) = 0 = U(L) plot (jpg) |
Plot FEA & exact U(x) |
|

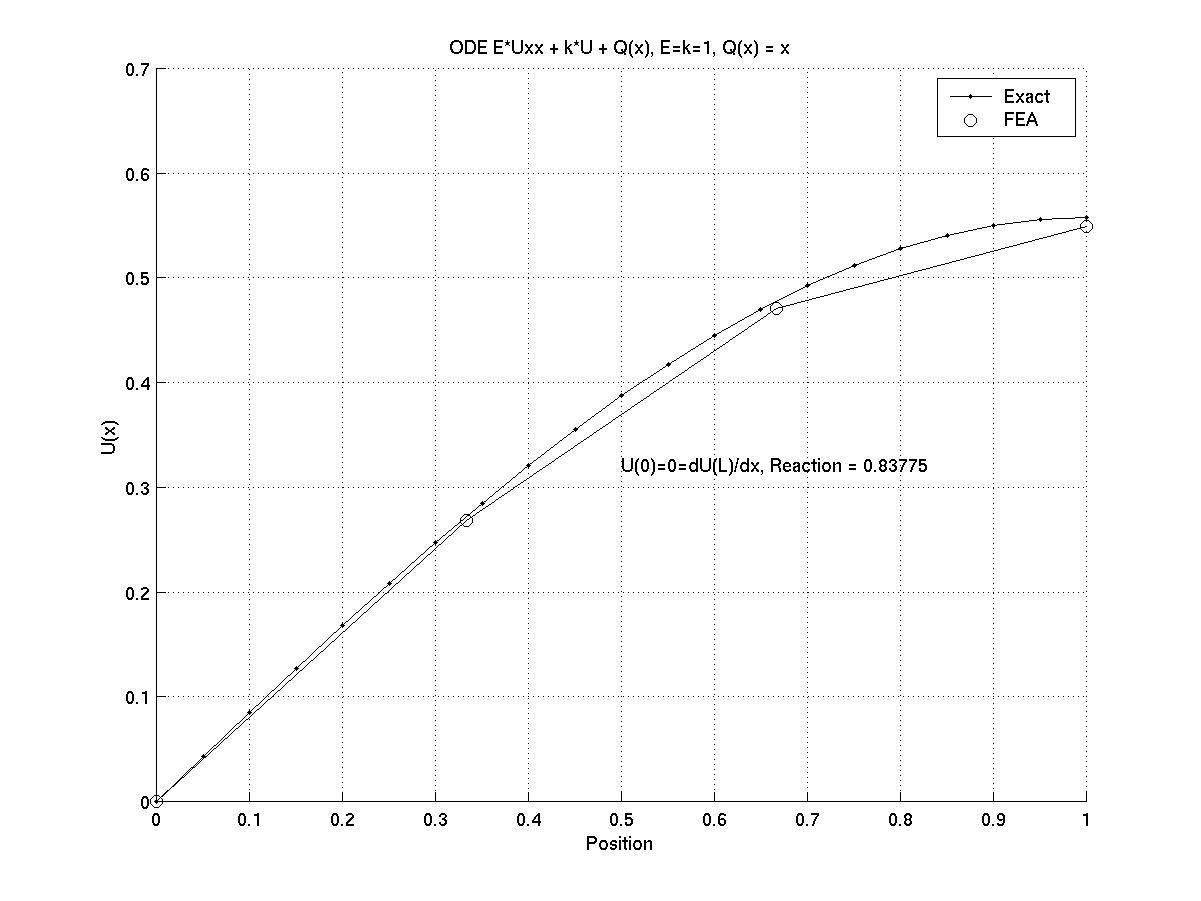

Three element U(0) = 0 = dU(L)/dx plot (jpg) |
Plot FEA & exact U(x) |
|
Akin Uxx+U+Q=0 general BC, quadratic el(.m) |
FEA Q(x)=x with any number L3 elements |
|
Akin torsional modes & freq, quadratic el(.m) |
Drill string with lumped bit, n_e elements |
|
Akin axial bar modes & freq, quadratic el(.m) |
Free-free axial bar modes, n_e elements |
|
Akin CST plane stress with plot output (.m) |
3 node triangles (Mar 9 06) |
|
Akin CST plane stress, isoparametric (.m) |
3 node triangles (Mar 9 06) |
|
CST plane stress, sample *.tmp I/O files |
3 node triangles (Mar 9 06) |
|
Akin T3 heat conduction (.m) |
3 node triangles (Mar 15 06) |
|
Simple conduction example w color plots (.doc) |
4, 3 node triangles (Mar 15 06) |
|
Akin plane stress XY source (.m) |
3 node triangles (Apr 10 06) |
|
Akin plane stress example (pdf) |
Sq w body force, source listing (Apr 10 06) |
Akin classic cubic beam source (.m) |
4, 3 node triangles (Mar 15 06) |
|
Akin classic beam example (pdf) |
Propped cantilever, source listing (Feb 14 08) |
|
Akin planar truss example (doc) |
2 Bay Truss, plots, source listing (Apr 16 06) |
|
Akin plane frame example (doc) |
Plane Frame, plots, source listing (Apr 17 06) |
|
Brief Kwon Text Summary |
Cite Kwon Matlab FEA Text |
|
Schrodinger 1-D Eigenproblem (.m) |
TISE Cubic C1 Elements |
|
Form Element Matrices (.m) |
Generate elements for SHO |
|
Expected Value Post-process (.m)
|
Optional post-process
|
|
Find cubic between nodes (.m)
|
Inside each element
|
|
Simple Harmonic Oscillator even result (txt) |
Eigenvalues, elem probabilities |
|
Postscript even mode 1 plot |
Test results |
|
Postscript even mode 2 plot |
Test results |
