  • Based upon HSPICE simulations of the surmised longest path, the estimated clock
    frequency for the chip is 67MHz. (see calculations below)


    This surprisingly fast clock frequency is the result of the A and B clocking scheme,
    which alternates the use of qualified A and B signals on frequent latches that
    propigate data through the chip. The longest delay between A and B clocking is found
    when data passes through the extensive combinational logic of the Logic PLA. This
    critical path connects the output of the guess and key comparison latches, which are
    latched on clock A, to the output latches of the Logic PLA, which are latched on clock B.

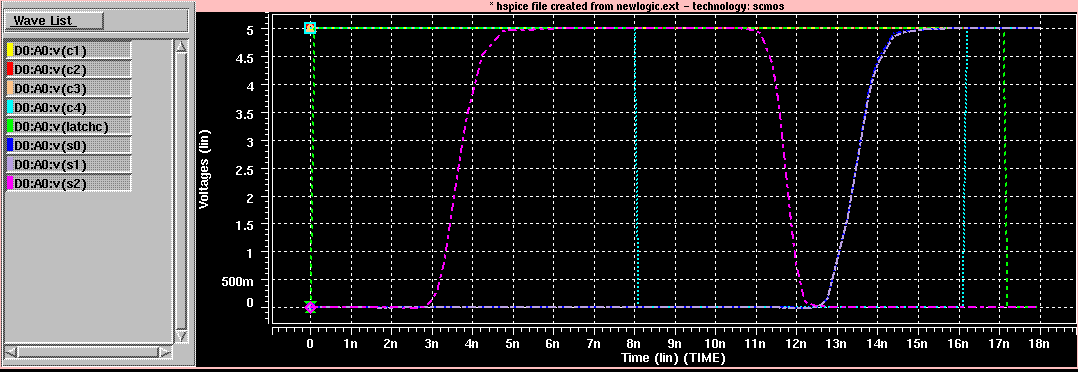

    The rise time of the Logic PLA outputs, as seen below, is longer than the fall time.
    clock A -> clock B
    Rise time: 15.5-8.03 = 7.47nS
    T = longest path * 2 = 14.94nS
    1/T = frequency = 66.93 MHz

    Spice Analysis of Comparison Logic

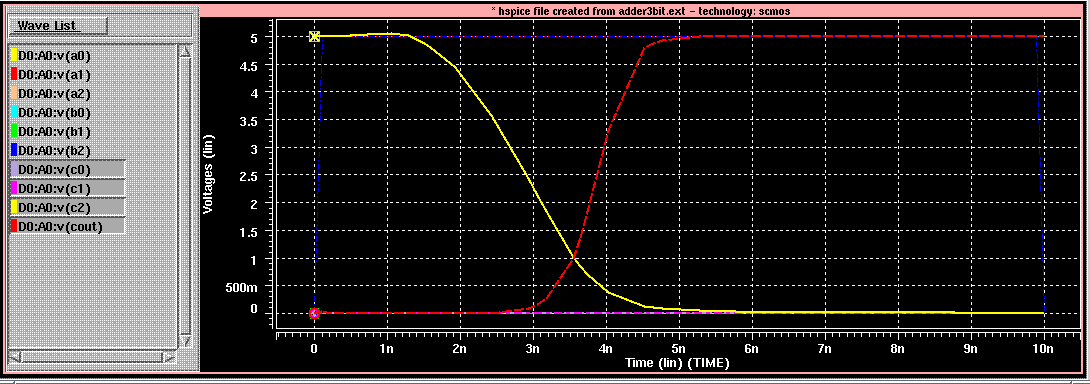

    HSPICE simulation of the 3-bit Ripple-Carry Adder reveals a longest path of 6.2nS.
    The following plot simulates the situation requiring a carry to propigate throughout the
    entire adder. Just like with the critical path analysis above, the outputs of the adder
    must be valid for latching on clock B. This gives the following clock frequency, which
    is faster than the above calculated frequency and consistent with the previous
    assumption that the above path is the most critical path of the chip.

    clock A -> clock B
    Fall time: 6.3-.01 = 6.2nS
    T = 6.2*2 = 12.4ns
    1/T = frequency = 80.65MHs > 67mHz

    Spice Analysis of 3-Bit Adder
